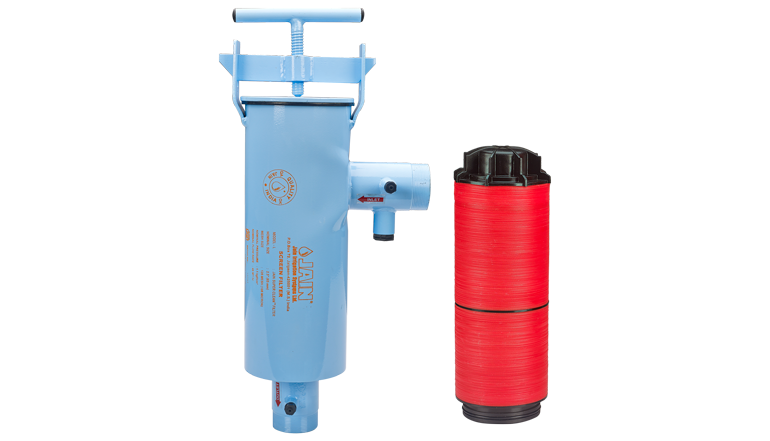

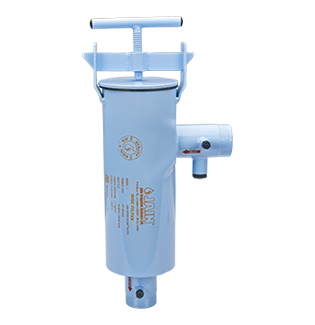

L Disclean® ML Filter Silver

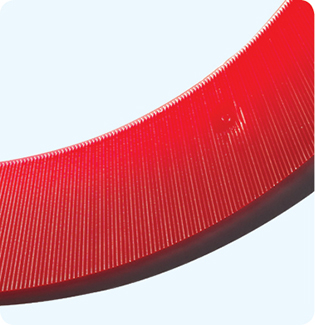

  • Radially Convergent Grooved Discs Disclean® element with strong, precision engineered and radially grooved disc to provide fine three dimensional filtration. (Flow direction Out to In)
  • Special Filter Design Tangential inlet protects the screen from direct impact of sharp/angular particles

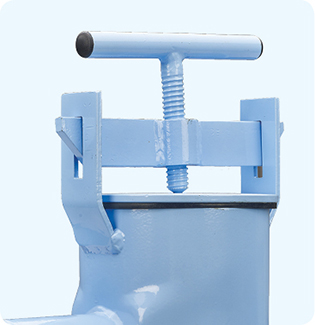

  • Easy for Maintenance Strong and smooth opening and closing for cleaning disc element
  • Standard Epoxy Coating for Protection from Corrosion Coated with more than 70 micron thick light blue coloured epoxy powder from both inside and outside surface for protection against corrosion and weather effects
  • Various Connection Options Available Threaded connection, Flanged connection or Easy Fix connection available

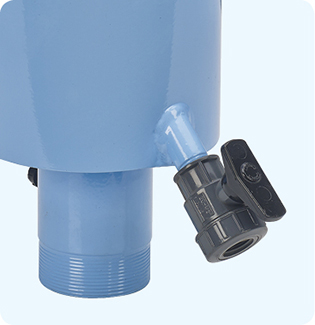

  • Draining Facility Available Drain valve position on upper & lower sides of the body provides installation flexibility
  • Mild steel construction.
  • Disc element construction allows easy cleaning under flowing water
  • Available in standard mesh of 100 micron size. (other mesh sizes available On demand).
  • Flow direction from outside of the filtering element to inside. (Out to In)
  • Maximum operating pressure 6 kg/cm² (142 psi).
  • On demand, Disclean – ML can also be supplied with automatic flushing option.
  • Disclean – ML filter can also be supplied with stainless steel body.
