Excel® PVC Free Foam Sheet is chemically foamed, rigid, light weight extruded sheet with fine & homogenous closed cell structure having a smooth matt surface finish on both sides.
Main Features
Easy to Fabricate
Light Weight
Outstanding Printability
Fine Cell Structure
Low Flammability
Non Warping
Non Corrosive
Non Toxic
High Impact Strength
Suitable For
Cuttting
Sawing
Shearing
Punching
Drilling
Milling
Rivetting
Screwing
Painting
Printing
Photo Mounting
Bending
Engraving
Applications
Advertising Signs
Displays

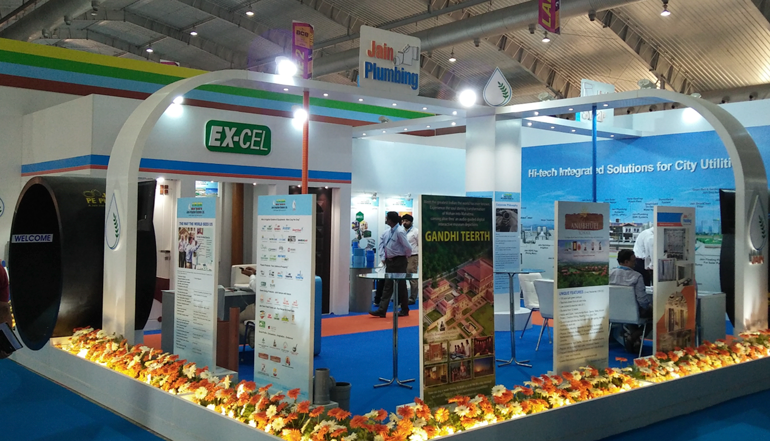

Exhibition Stands
Point of Sale
Interior Designs
Bathroom Fittings
Models & Prototypes
Panels & Cabins
Embossing & Engraving
Thermoforming
Lumber
Trimboard
Product Range
Colour Code
Colour
Thickness
Std. Width
Std. Length
mm
inch
mm
inch
J1018
Bright White
2 to 10 mm
1000
39
2000
79
1220
48
2440
96
1560
61
3050
120
2050
80
3050
120
12 to 25 mm*
1220
48
2440
96
3050
120
4880
192
5490
216
6100
240
* One side embossed pattern also available.
Technical Properties
Properties
Test
Unit
Value
Physical
Density
DIN 53479
g/cc
0.55 - 0.70
Hardness
DIN 53505
Shore 'D'
≥ 42
Water Absorption
DIN 53495
%
≤ 1.0
Mechanical
Tensile Strength*
DIN 53455
MPa
≥ 15
Elongation at Break**
DIN 53455
%
≥ 15
Modulus of Elasticity
DIN 53457
MPa
900 - 1500
Izod Impact Strength*
ASTM D256
KJ/M²
≥ 9.0
Charpy Impact Strength
DIN 53253
KJ/M²
≥ 15
Flexural Strength
DIN 53452
MPa
> 32
Compressive Strength at 10% Deformation
DIN 53421
MPa
> 6.5
Electrical
Surface Resistivity
ASTM D 257
Ω
> 1 x 1014
Volume Resistivity
ASTM D 257
Ω-cm
> 1 x 1015
Dielectric Constant at 1 MHZ
ASTM D 150
-
1.56
Dielectric strength
DIN 53481
KV/cm
≥ 90
Thermal
Vicat Softening Temperature
DIN 53460
ºC
≥ 73
Heat Deflection Temperature @ 1.8 MPa
DIN 53461
ºC
58
Coefficient of Linear Expansion
DIN 53752
mm/m ºC
0.08
Thermal Conductivity
DIN 52616
W/m K
0.05 - 0.07
Flammability
UK
BS 476 Part 7
Class 1 Y
France
NFP 92-501
Class M1
USA
UL 94
V 0
* 15 MPa for free foam sheet with typical density 0.7 g/cc
* 13 MPa for free foam sheet with typical density 0.55 g/cc
** 15% for free foam sheet with typical density 0.7 g/cc
** 13% for free foam sheet with typical density 0.55 g/cc

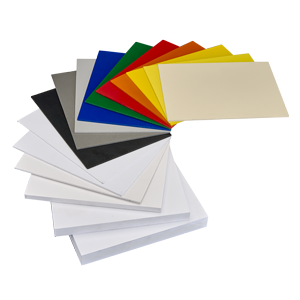

(The Colour shades are only representative) Colours are available in 3,5 & 6 mm thickness.
Black and Grey colours are also available from 10 to 25 mm thickness.
