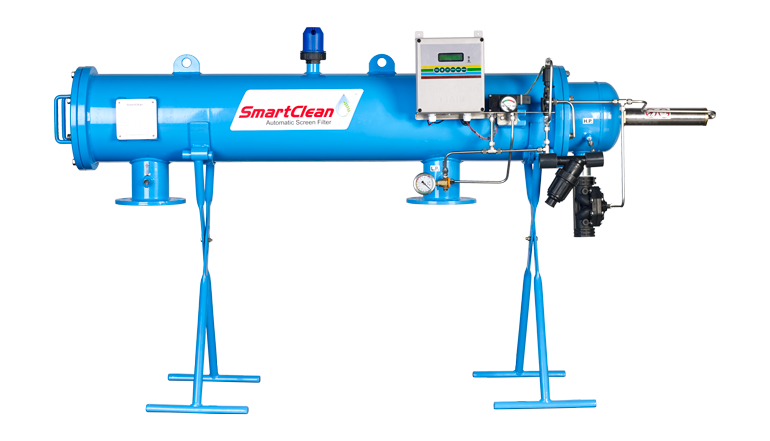

SmartClean – HHO Filter

Specification

  • Connection Sizes (inch): 04, 06, 08, 10

  • Nominal Flowrate (m³/hr): 100, 110, 200, 225, 270, 280

  • Maximum Oprating Pressure(kg/cm²): 10

Applications

  • Used for Water supply systems, Irrigation systems, Cooling Tower, Wastewater Treatment, Industrial Pre-Filtration etc.

Features & Benefits

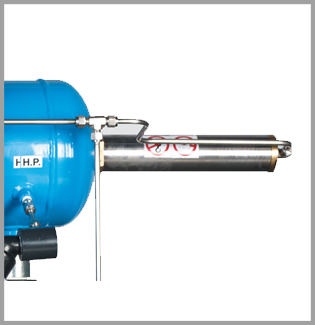

Hydraulic Piston Reliable, smooth and low pressure operating hydrophilic piston mounted in staleness Steel cylender

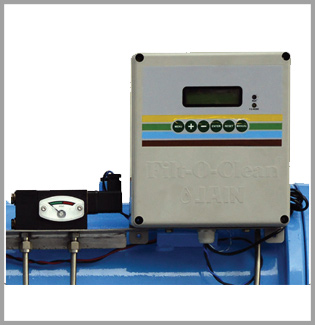

Equipped with smart backflush controller Equipped with smart backflush controller – Filt-O-Clean Plus which controls and monitors flushing cycles smartly.

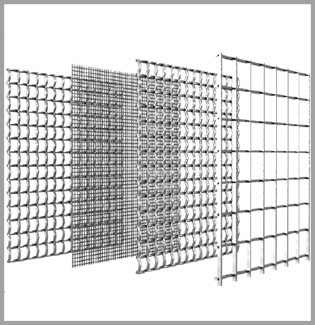

Choice of Filtration Degree Filtration available with following degree as 80, 100, 125, 200 & 300 micron

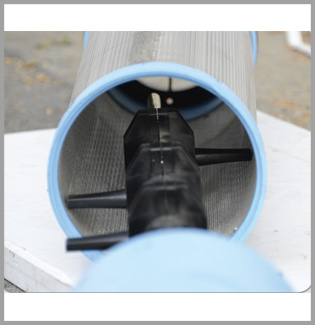

Self-Suction Cleaning Mechanism Cleaning of the filter is carried out by the suction smart scanner which rotates spirally across the screen
