Concept

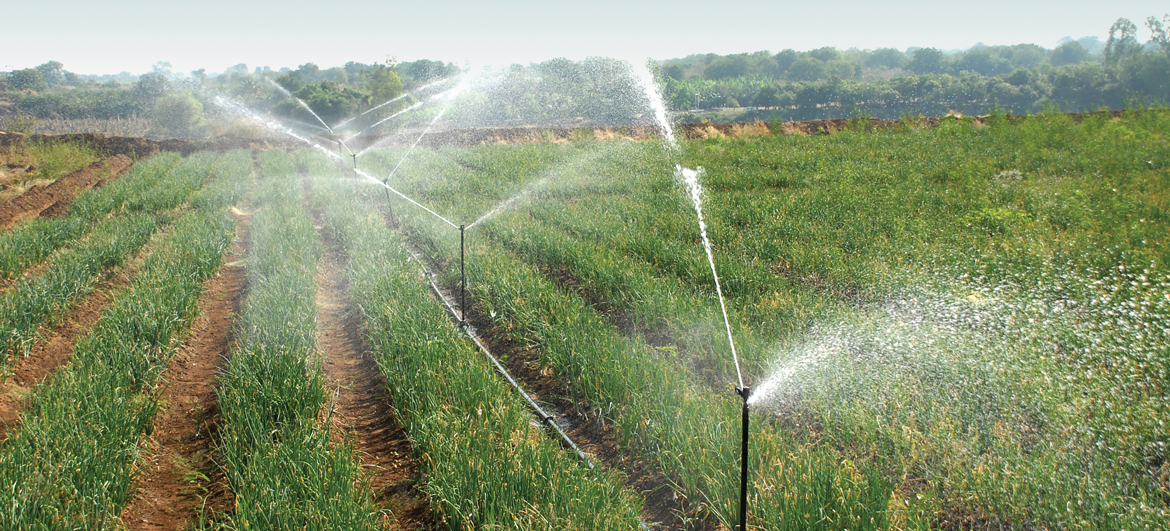

Under this Unique Canal Command project, water is brought to the Diggies from Canal Network through a feeder canal/pipe and further conveyed to the sprinkler irrigation outlets provided for every 8 to 12 ha area using pressurised HDPE piping network for irrigating 15000 ha command area through sprinkler irrigation system.

Components Executed By Jain Irrigation

1) Distribution Systems including HDPE Pipelines (110 mm to 200 mm -450 Km)

2) Installation of Pump sets 12.5 HP to 30 HP (220 No)

3) Sprinkler Outlets (1700 Nos.)

Apart from the above Jain Irrigation also conducted survey of the project area, investigation, planning and designing of the project, supplying, laying, installing, testing & commissioning of the project. The scope also involves providing training to water users and departmental staff, two years maintenance after commissioning on turnkey basis.

Cost - Benefit Comparison of JIIS V/s Canal Irrigation (For 600 Ha Sprinkler model)
