PVC Threaded Adaptor

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 20mm to 630mm in different pressure ratings ranging from PN 4 to PN 16kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

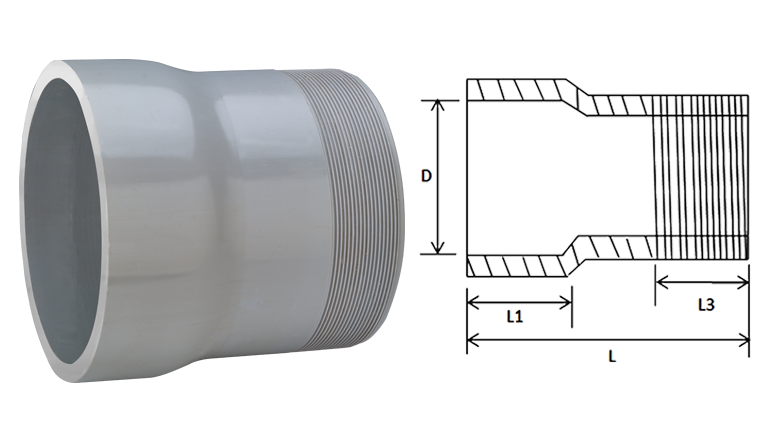

Code Size L L1 L3 D
PVF125MTA 125 181 68.5 35 125.1
PVF140MTA 140 194 76.0 35 140.2
PVF160MTA 160 238 86.0 50 160.2
PVF180MTA 180 256 96.0 50 180.2
PVF200MTA 200 291 106.0 60 200.3
PVF225MTA 225 330 118.5 70 225.3
PVF250MTA 250 352 131.0 70 250.4
PVF280MTA 280 413 146.0 90 280.4
PVF315MTA 315 444 163.5 90 315.4
