Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard
Range: 63mm to 500mm in different pressure ratings ranging from PN 4 to PN 16 kg/cm2
We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

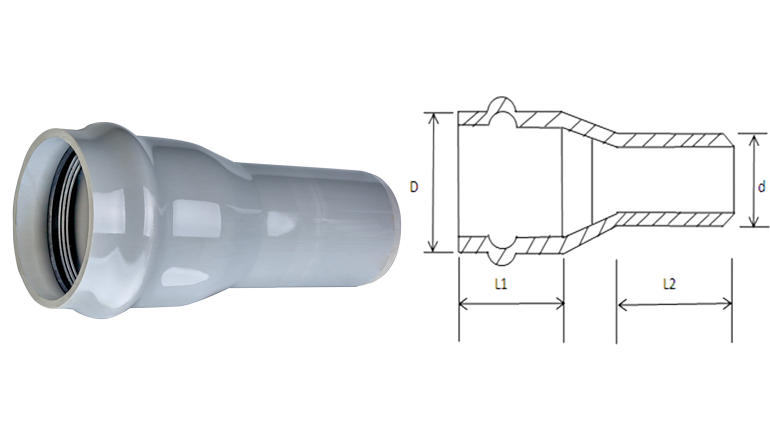

|PVFRSQ075X063X08||75 X 63||113||157|
|PVFRSQ090X075X08||90 X 75||120||163|
|PVFRSQ110X090X08||110 X 90||128||170|
|PVFRSQ125X110X08||125 X 110||134||178|
|PVFRSQ140X125X08||140 X 125||140||184|
|PVFRSQ160X140X08||160 X 140||150||190|
|PVFRSQ180X160X08||180 X 160||157||200|
|PVFRSQ200X180X08||200 X 180||165||217|
|PVFRSQ225X200X08||225 X 200||176||225|
|PVFRSQ250X225X08||250 X 225||185||236|
|PVFRSQ280X250X08||280 X 250||201||245|
|PVFRSQ315X280X08||315 X 280||213||261|
