PVC Quick Fix One End Long Repair Coupler

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 63mm to 500mm in different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

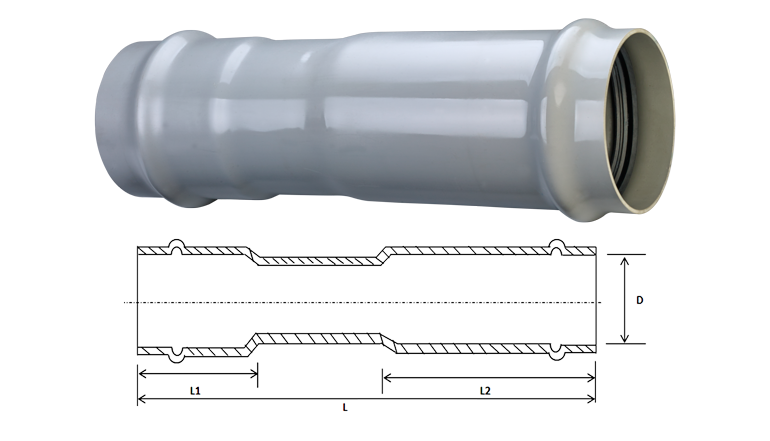

Technical Specifications

Code L1 mm L2 mm L mm
PVFRLC06304OL540 107 214 541
PVFRLC07504OL560 113 226 559
PVFRLC09004OL580 120 240 580
PVFRLC11004OL610 128 256 604
PVFRLC12504OL620 134 268 622
PVFRLC14004OL640 140 280 640
PVFRLC16004OL670 150 300 670
PVFRLC18004OL690 157 314 691
PVFRLC20004OL715 165 330 715
PVFRLC22504OL750 176 352 748
PVFRLC25004OL775 185 370 775
PVFRLC28004OL825 201 402 823
PVFRLC31504OL860 213 426 859
PVFRLC35504OL900 228 456 904
PVFRLC40004OL940 241 482 943
Note :
• All dimensions are in mm.
• All fabricated fittings are available in 04 kg/cm² pressure rating. Please specify other pressure ratings as per the requirement viz. 06, 08, 10 kg/cm².
