Quick Fix Metal Flange Adaptor

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 63mm to 500mm in different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

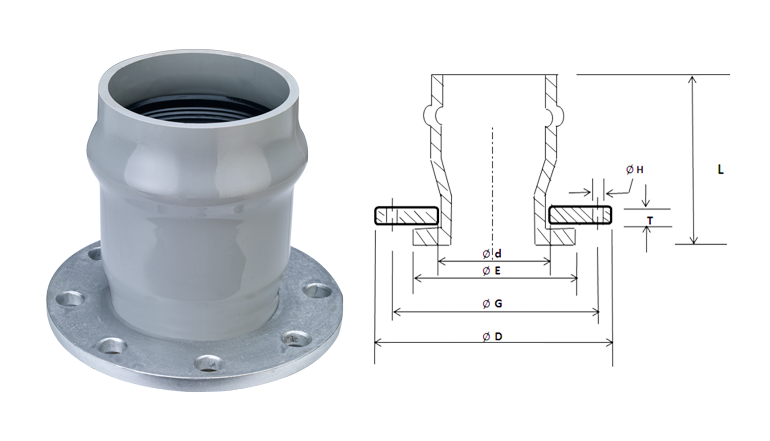

Technical Specifications

CODE
SIZE
L DIA E
MIN. MAX
PVFAWFQ063X06 63 138.0 101
PVFAWFQ075X06 75 149.0 121
PVFAWFQ090X06 90 162.0 136
PVFAWFQ110X06 110 181.0 156
PVFAWFQ125X06 125 195.0 186
PVFAWFQ140X06 140 208.0 186
PVFAWFQ160X06 160 225.0 212
PVFAWFQ180X06 180 245.0 212
PVFAWFQ200X06 200 263.0 267
PVFAWFQ225X06 225 287.0 267
PVFAWFQ250X06 250 309.0 322
PVFAWFQ280X06 280 337 322
PVFAWFQ315X06 315 372 372
PVFAWFQ355X06 355 406 432
PVFAWFQ400X06 400 441 483
PVFAWFQ450X06 450 483 533
PVFAWFQ500X06 500 528 588
Note :
• All dimensions are in mm
• All fabricated fittings are available in different pressure classes up to PN 20 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
