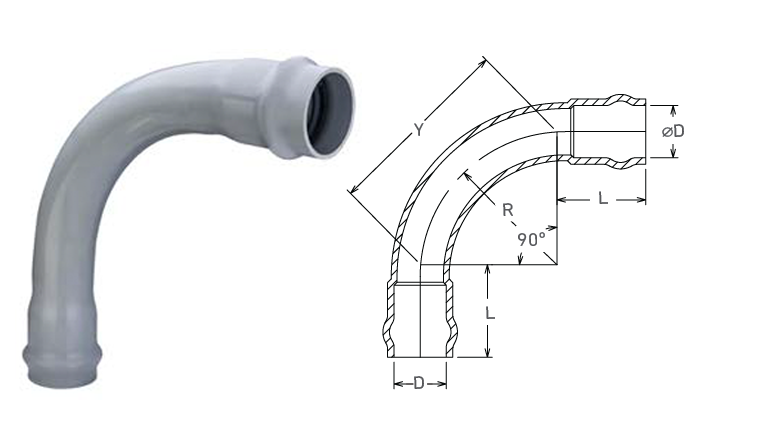

Quick-Fix Bend 90°

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 63mm to 500mm in different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

CODE ND Y MIN. L MIN. R MIN.
PVFBQ90063X10 63 297.0 133 189
PVFBQ90075X10 75 354.0 142.5 225
PVFBQ90090X10 90 424.0 157 270
PVFBQ90110X10 110 519.0 176 330
PVFBQ90125X10 125 589.0 189.5 375
PVFBQ90140X10 140 660.0 203 420
PVFBQ90160X10 160 754.0 220 480
PVFBQ90180X10 180 848.0 240 540
PVFBQ90200X10 200 942.0 258 600
PVFBQ90225X10 225 1060.0 281.5 675
PVFBQ90250X10 250 1178.0 304 750
PVFBQ90280X10 280 1319.0 332 840
PVFBQ90315X10 315 1484.0 366.5 945
PVFBQ90355X10 355 1673 400.5 1065
PVFBQ90400X10 400 1884 436 1200
PVFBQ90500X10 500 2355 523 1500
Note :
• All dimensions are in mm
• All fabricated fittings are available in different pressure classes up to PN 20 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
