PVC One End Long Repair Coupler

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 20mm to 630mm in different pressure ratings ranging from PN 4 to PN 16kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

Technical Specifications

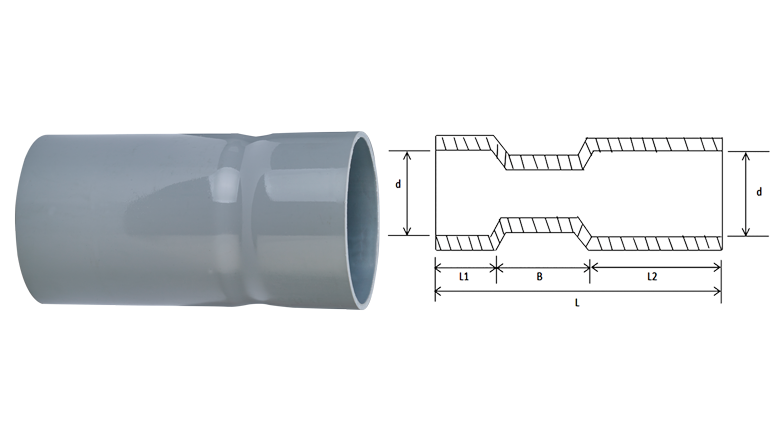

Code Size d L1 L2 B L
PVFSLC06304OL213 63 63.1 37.5 150 25 212.5
PVFSLC07504OL219 75 75.1 43.5 150 25 218.5
PVFSLC09004OL226 90 90.1 51.0 150 25 226.0
PVFSLC11004OL236 110 110.1 61.0 150 25 236.0

Note :
• All dimensions are in mm.
• All fabricated fittings are available in 04 kg/cm² pressure rating. Please specify other pressure ratings as per the requirement viz. 06, 08, 10 kg/cm².
