Blind Flange

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: 20mm to 630mm in different pressure ratings ranging from PN 4 to PN 16kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.


Technical Specifications

CODE
SIZE

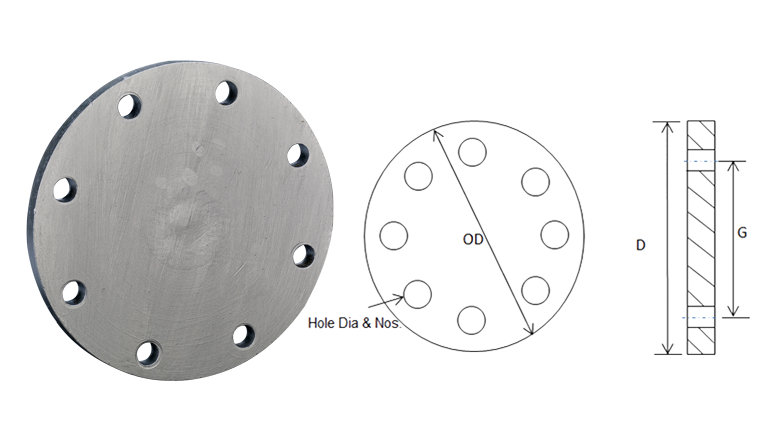

DIA G DIA D T DIA H
NO OF HOLE
(PCD) (O.D) (THICK.) (HOLE DIA)
CIF63 63 125 165 7 19 4
CIF75 75 145 185 7 19 4
CIF90 90 160 200 9.5 19 4
CIF110 110 180 220 9.5 19 8
CIF125 125 210 250 11 19 8
CIF140 140 210 250 12.5 19 8
CIF160 160 240 285 12.5 23 8
CIF180 180 240 285 12.5 23 8
CIF200 200 295 340 16 23 8
CIF225 225 295 340 20 23 8
CIF250 250 350 395 20 23 12
CIF280 280 350 395 20 23 12
CIF315 315 400 445 24.5 23 12
CIF355 355 460 505 24.5 23 16
CIF400 400 515 565 24.5 28 16
CIF450 450 565 615 28 28 16
CIF500 500 620 670 28 28 20
CIF560 560 685 740 32 33 20
CIF630 630 755 810 32 33 20
Note : • Above Table is for particular one standard. Flanges as per different BS 10 Tables, ISO standard are made available as per requirement
