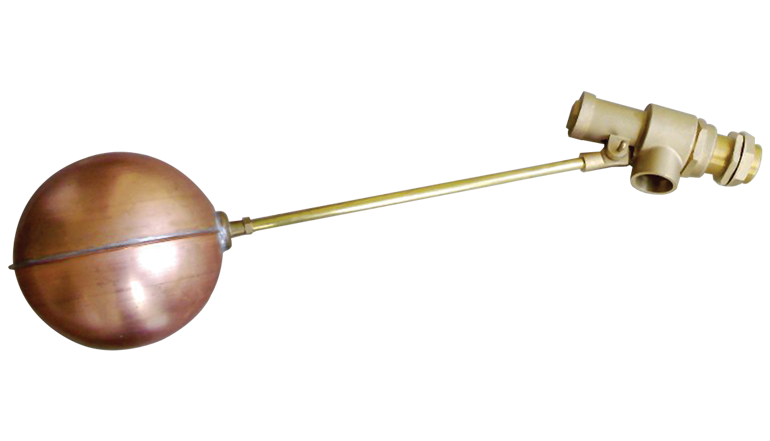

BRASS FLOAT VALVE

Technical Specifications

Size Pressure Arm Length Recommended Ball Float Size Thread Size Piston Seat Tail Length Recommended Operating Temp
½” LP/HP 8 ¾” 4½ - 6” 5/16 Whit Nylon 13/8” 0-85°C
¾” LP/HP 13” 4½ - 6” 5/16 Whit Nylon 1 ½” 0-85°C
1” HP 16” 8” 7/16 Whit Brass 1 ½” 0-85°C
1¼” HP 16” 10-12” 9/16 Whit Brass 1¾” 0-85°C
1½” HP 18” 10-12” 5/8 Whit Brass 1¾” 0-85°C
2” HP 22” 10-12” 5/8 Whit Brass 2” 0-85°C
