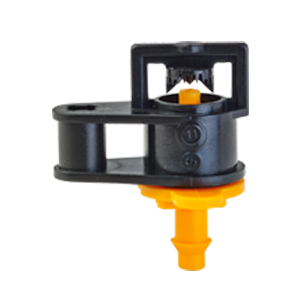

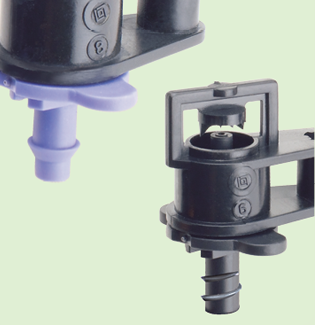

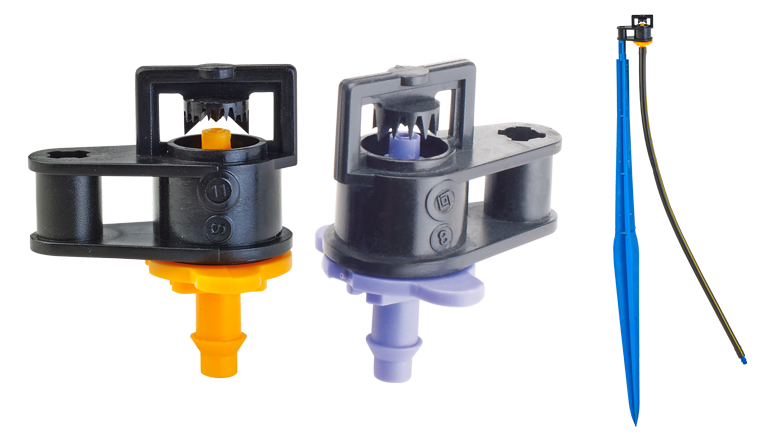

Turbo - Jet




  • Ray jet for orchard, vineyard and landscape irrigation.
  • Static, low maintenance jet.
  • High clogging resistance.
  • Diverse distribution patterns and wetted diameters.
  • Easy to open and clean.

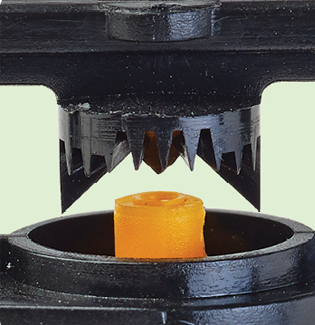

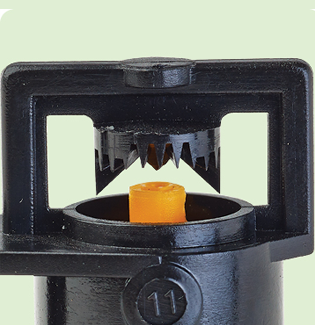

  • Unique nozzle structure forms turbulent flow and wide water pathways even at low flow rates, for high clogging resistance.

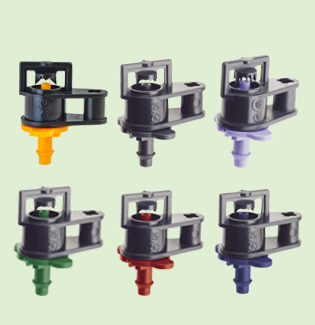

  • Large number of nozzle and spreader combinations provides wide selection of flow rates and distribution patterns.
  • Flow rates: 16 - 110 lph.
  • Filtration requirements,
    – Black, orange and blue nozzles: 130 microns.
    – Violet, green and red nozzles: 200 microns.
  • Operating pressures: 1.0 - 3.5 kg/cm² (14.22 - 49.77 psi).
