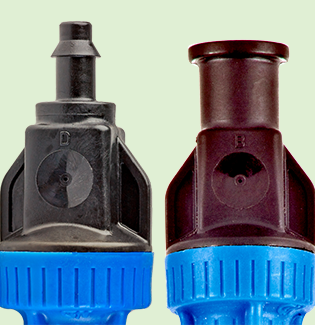

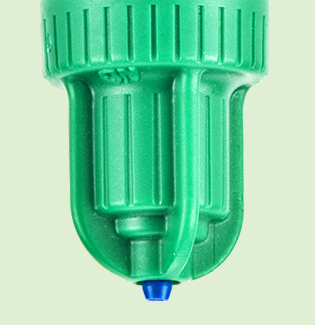

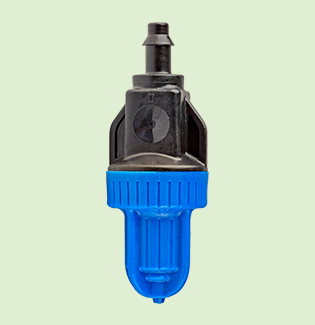

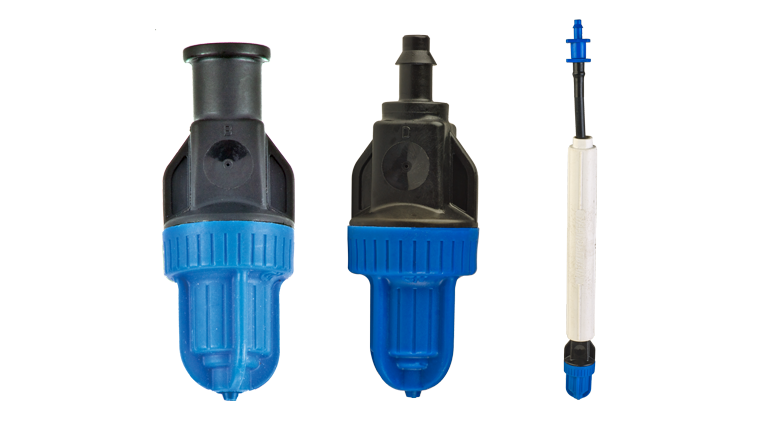

Super Fogger




  • Chemical resistant raw materials.
  • The optimal solution for cooling, humidifying and pesticide spraying in greenhouses.
  • Very small droplets (average of 90 microns) for minimal foliage wetting ( pulsed operation).

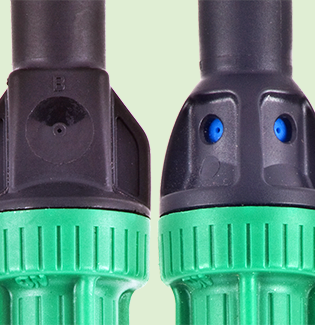

  • Two nozzle fogger with built-in Leakage Prevention Device.
  • Precision engineering to give fine droplets (average 90 microns).
  • Economical.
  • Excellent Coverage.
  • Easy to install and service.
  • Different connection options suitable for PE and PVC pipe.
  • Discharge - 13 lph ( 2 x 6.5 lph outlets ).
  • Operating pressure: 4.0 kg/cm² (56.88 psi).
  • Recommended spacing:
    - For cooling and humidifying only:
       3.0 to 4.0 m between laterals.
       2.0 to 3.0 m between Foggers.
    - For cooling, humidifying and spraying :
       2.0 to 3.0 m between laterals.
       1.5 m between Foggers.
  • Minimum filtration requirement 75 micron.
