Products

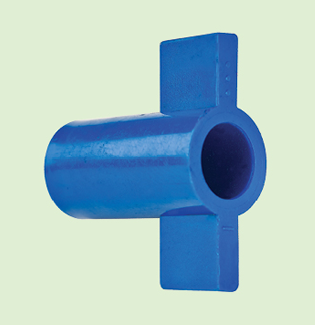

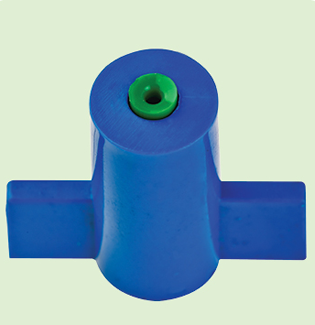

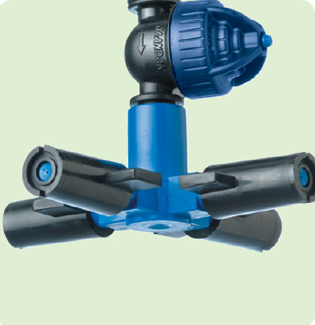

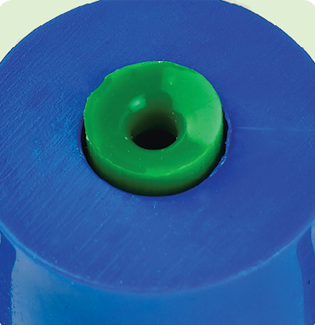

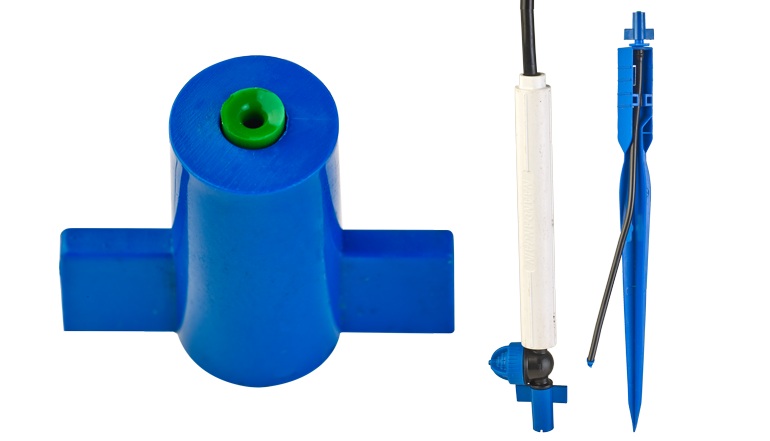

Green Mist




  • The double purpose emitter for misting & irrigation over propagation benches.
  • Uniform coverage.
  • Ideal droplet size prevents drift of excessively fine mist.
  • Coloured nozzles for various flow rates.
  • No dripping during operation.
  • Undisturbed and symmetrical water distribution (no deflection or “dead corners”).
  • Can be fitted with Leakage Prevention Device (LPD) for perfect pulsed operation.
  • Operating pressure: 2 - 4 kg/cm² (28.44 - 56.88 psi).
  • Flow rate: 30 - 44 lph (see performance chart).
  • Wetted diameter: 1.2 m.
  • Filtration requirements: 100 microns.
