Features and Specifications:
-

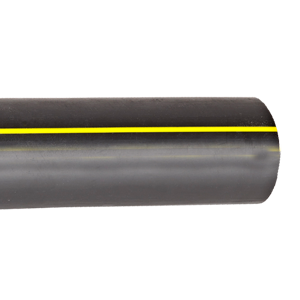

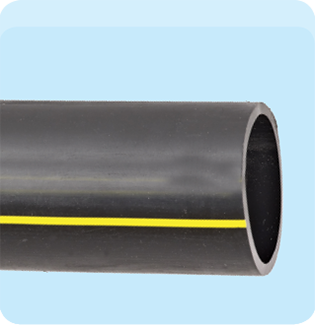

Marked with two parallel yellow lines ‘Twin-Line™’.
Symbol of quality material.
-
Manufactured from virgin LLDPE using advanced
extrusion technology.
-
Excellent characteristics of LLDPE provide
durable tubing with close dimensional tolerances.
-
UV stabilized.
-
No environmental effects.
-
On demand available with anti rodent feature.
-
Each batch passes through stringent quality
tests to ensure efficient and trouble free performance.
-

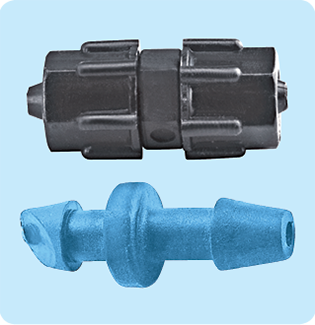

Specially designed hydraulic control tube fitting
and 4mm fittings suitable for extension tube are available.
Please refer ‘Polyfittings and Accessories’ for more details.
|
Applications:
-
Hydraulic control tube is used for connection
of hydraulic control valves. It can also be used as an extension
tube for high pressure application.
-
Extension tube is used as an extension line
in micro irrigation system.
|
Technical Specification:
|
Code |
Description |
Nom. Dia. |
Inside Diameter |
Min. Wall Thickness |

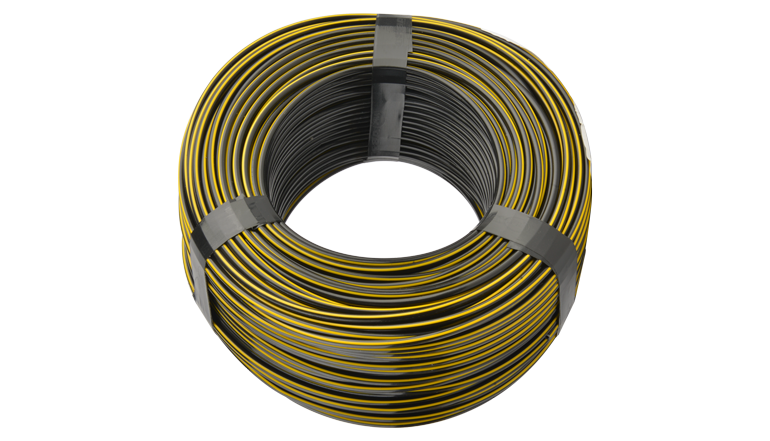

Std. Coil Length |
Avg. Weight
per Coil |
| mm |
mm |
mm |
m |
kg. |
lbs. |
| THO08130 |
Hydraulic Cnt. Tube |
8 |
5.50 |
1.30 |
200 |
5.20 |
11.41 |
| THO06100 |
Extension Tube 6mm OD |
6 |
4.00 |
1.00 |
250 |
3.70 |
8.00 |
| THO08100 |
Extension Tube 8mm OD |
8 |
6.00 |
1.0 |
250 |
5.10 |
11.22 |
|
Ordering Specifications:
Example: THO08130 - This code refers
to Jain Tough Hose - Hydraulic Control Tube of nominal diameter
8 mm & wall thickness of 1.3 mm.
|
|
|
|
