Features and Specifications:
- Manufactured from high performance polyethylene.
- Use of state-of-the-art technology ensures
close dimensional tolerance and longer life.
- Resistant to UV radiation & environmental effects.

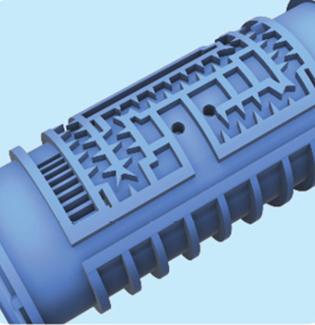

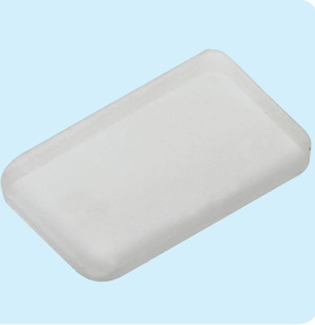

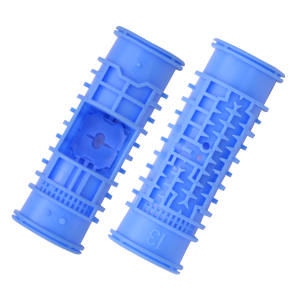

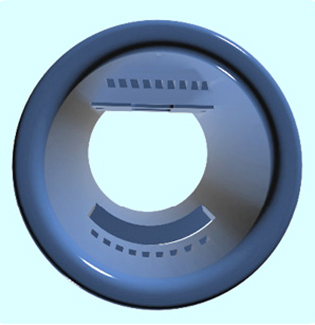

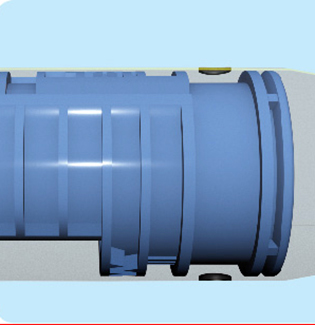

- Cylindrical dripper with an inbuilt silicon
diaphragm ensures consistent performance for longer time.
- Online stringent quality checks at every stage.
- Especially suitable for undulating terrain
and steep slopes.
- Wide pressure compensation range from 0.5-4
kg/cm² (7.11 to 56.88 psi).

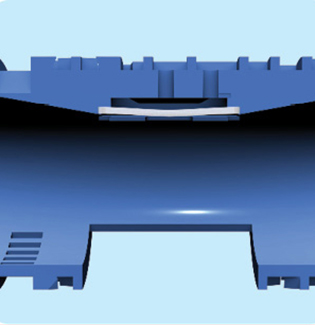

- Self cleaning, diaphragm retracts dynamically to throw away particles which are blocking the emitter.
- Specially designed emitting pipe fittings are
available. Please refer to ‘Polyfittings & Accessories’ pages.
- Available in nominal OD of 16mm, 18mm and 20mm
- Minimum 100 micron filtration recommended.
- Available in standard dripper spacing 30, 40,
50, 60, 75 & 90 cm. Other spacings available on demand.
- On request Turboline PC® can also be supplied
in group spacing.
- On demand, available with rodent deterrent feature.
Applications:
- Ideal for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, floriculture, vegetables and spices.
|
- Suitable for surface as well as sub-surface irrigation.
- Recommended for undulating terrain & steep slopes and where longer lateral running length is necessary.
|
Technical Specifications:
| Reference Code |
Nominal Discharge |
Emitter
exponent (x) |
Flow coefficient
(k) |
| lph |
gph |
| Turboline PC® 16mm OD (14.2mm ID) |
| DL1620XXXXXXXP |
2.0 |
0.53 |
0 |
1.9 |
| DL1627XXXXXXXP |
2.7 |
0.71 |
0 |
2.6 |
| DL1645XXXXXXXP |
4.5 |
1.19 |
0 |
4.5 |
| Turboline PC® 18mm OD (15.9mm ID) |
| DL1809XXXXXXXP |
0.9 |
0.24 |
0 |
0.9 |
| DL1816XXXXXXXP |
1.6 |
0.42 |
0 |
1.6 |
| DL1822XXXXXXXP |
2.2 |
0.58 |
0 |
2.5 |
| DL1838XXXXXXXP |
3.8 |
1.00 |
0 |
3.8 |
| Turboline PC® 20mm OD (18.0mm ID) |
| DL2009XXXXXXXP |
0.9 |
0.24 |
0 |
0.9 |
| DL2016XXXXXXXP |
1.6 |
0.42 |
0 |
1.6 |
| DL2022XXXXXXXP |
2.2 |
0.58 |
0 |
2.5 |
| DL2038XXXXXXXP |
3.8 |
1.00 |
0 |
3.8 |
* Nominal discharges for pressures class 2 under standard testing conditions. |
|
|
Performance Graph - Turboline PC® 16 mm OD
|
Performance Graph - Turboline PC® 18/20 mm OD
|
Dimensions of Turboline PC®
Nominal Diameter
mm |
Inside
Diameter
mm |
Wall Thickness, mm |
Standard Coil Length, m |
| Class-1 |
Class-2 |
Class-3 |
Class-4 |
| 16 |
14.2 |
0.5 |
0.7 |
1.0 |
1.3 |
100, 250, 400 |
| 18 |
15.9 |
0.7 |
0.9 |
1.2 - 1.4 |
1.5 |
100, 250 |
| 20 |
18.0 |
0.7 |
0.9 |
1.2 - 1.4 |
1.5 |
100, 250 |
* Rodent Deterrent tubing is manufactured using a special additive, by virtue of which the properties of the tubing is enhanced in such a way that once the rodent bites the tube it gets an extremely bitter taste. This effect deters the rodent from gnawing the tubing again.

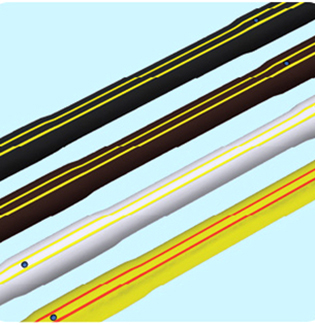

Rodent deterrent tubing is available in two parallel red stripes – “Twin Line®”. |
