Features and Specifications:
-
Turbulent flow path resist clogging.
-
Strong ribbed stake allows exact positioning
of the dripper.
-
Can be used with 6mm OD extension tube or vinyl tube.
-
Easy to install.
-

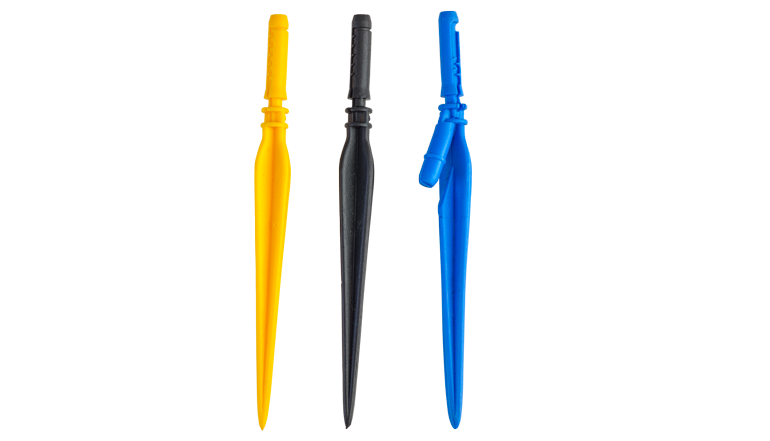

Colour of the dripper represents flow and facilitates
easy identification.
-
On demand can supply assembly including dripper attached with required length of extension tube and take off.
-
Minimum filtration requirement - 100 micron.
Applications:
-
Suitable for pot irrigation, nurseries, glass/green houses, vegetables, home gardens.
|
|

|
Ordering Specifications:

Example: DTSD4 - This code represents Turbo Stake Dripper having 4 lph discharge.
|
Technical Specifications :
| Code |
* Discharge |
Colour |
| lph |
gph |
| DTSD15 |
1.5 |
0.40 |
Yellow |
| DTSD4 |
4.0 |
1.06 |
White |
| DTSD8 |
8.0 |
2.12 |
Blue |
* At an operating pressure of 1kg/cm² (14.22 psi).

|
|

|
|

|
|
