Standard Pure Polyester / Epoxy coating for Protecting from Corrosion Coated with more than 70
micron thick deep blue colored pure Polyester powder on outer surface & Epoxy coating from inner side for protection against
corrosion and weather effects

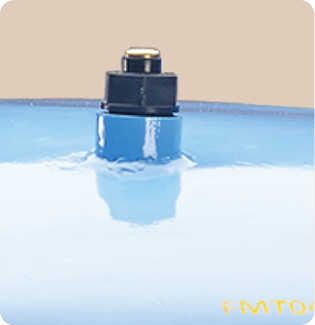

Vacuum Releasing Facility Vacuum breaker provided on top of filter to release air / vacuum
at start or end of system (from 2" onwards)

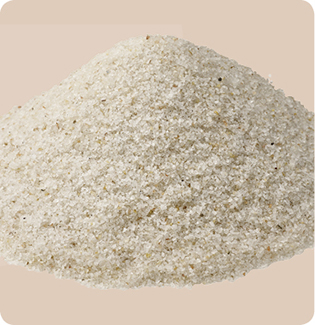

High Quality Silica Sand as MediaFiltration media is crushed silicasand/quartz gravel of particle
size 1 mm to 2 mm (0.039 to 0.078 inch)

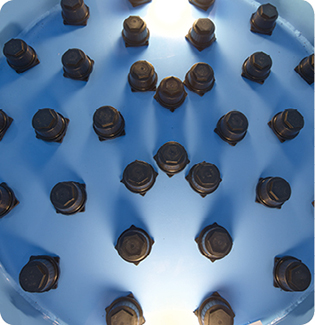

Innovative Mushroom Assembly Innovative Mushroom assembly provided to pass filtered water in system.

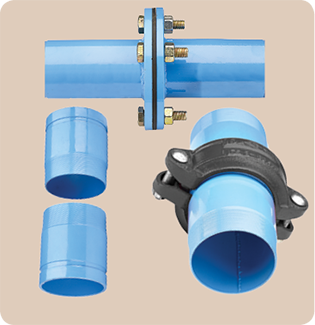

Various Connection Options Available Flanged connection or Easy Fix™ connection available
Various Options for Backwash Available in manual, semi automatic or fully automatic backwash options
Manufactured from mild steel / HDPE as per international fabrication standards
Designed for uniform distribution of incoming raw water over the media bed which ensures very effective filtration
Maximum pressure rating 10 kg/cm² (142 psi)
Standard unit consists Filtro–Master tank without manifold and accessories

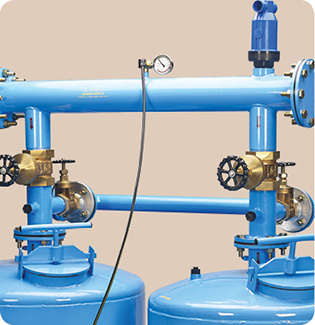

Specially designed manifold suitable for different models can be supplied as a special order
– Economical plastic manifold for Filtro–Master single tank unit manual backwash option.
– For other models, manifold assembled using metal pipes are available.
– On demand, manifolds can be supplied in custom sizes to meet the customers requirement.
Filtro–Master filter can also be supplied with stainless steel body

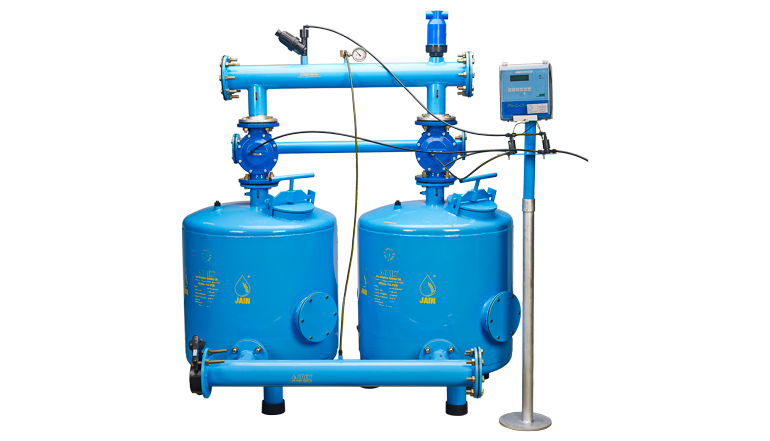

Optional multi tank modules for higher filtration capacity available
