Solar Home Lighting Powerpack System

Jain Jyot offers you a wide range of Solar Power Packs suitable for different applications.

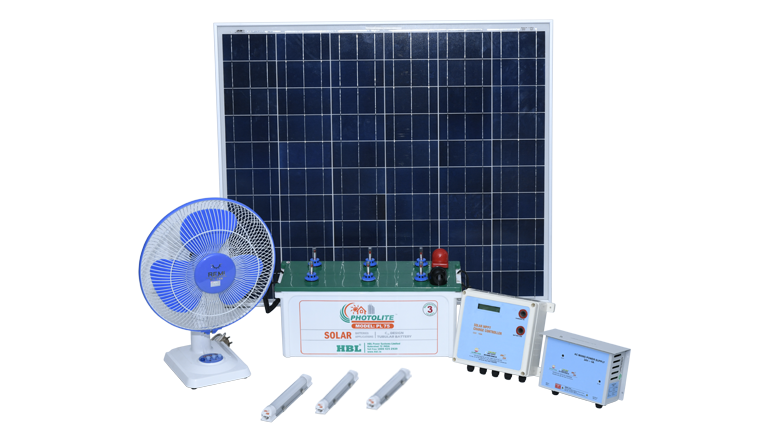

Jain Jyot power pack is a solar cum mains hybrid inverter with solar charging priority to power domestic appliances like CFL’s/ Tubes, Fans, T.V., Computer etc. The unit consists of solar panel, batteries, & solar/Mains charge controller cum inverter with logic circuit.


Applications

For Conventional loads like lamps, tubes, fans, etc.,

  • Homes
  • Shops
  • Banks
  • Clinics
  • Corridors, etc.

Features & Benefits

  • Intelligent MPPT Algorithm provides maximum Energy Harvest from the PV.
  • The system charges the battery from PV as well as conventional AC/Grid Power.
  • Controlled charging to prolong battery service life.
  • Long-life PV modules which can generate power for years.
  • Intelligently switch between Solar & Grid with priority to Solar.
  • Mobile Charging facility.
  • IP 21 protected ensures long lasting and consistent high performance.
  • Environment friendly-100% powered by the sun, solar panels reduce fossil fuel consumption, eliminating pollution.
  • Better and long life light source - LED lights, feature- white light without flickering and instant on.
  • Solar Panel: 36V, 120Wp @ STC. Multicrystalline type.
  • Luminaire: LED based Batten Light Luminaire (3W, 5W, 9W ).
  • Solar MPPT control electronics operating at 12VDC, 10 Amp.
  • Storage battery: Lead acid low maintenance 12VDC, 120 Ah.
  • Inter-connecting wires/cables.
  • PV Module mounting frame.
  • Battery box & Accessories.
