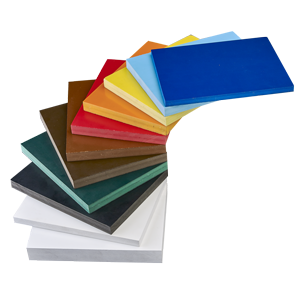

PVC Integral Sheet (Ex-cel® IF)
Excel® PVC Integral Free Foam Sheet is chemically foamed, extruded rigid, light weight sheet with fine & homogeneous closed cell structure & smooth, glossy, hard surface finish on both sides. |
|
Main Features
- Easy to Fabricate
- Light Weight
- Outstanding Printability
- Fine Cell Structure
- Firm Outer Skin
- Low Flammability
- Good Sound & Thermal Insulation
- Self Extinguishing
- Non Corrosive
- Non Toxic
- Smooth & Semi gloss
- High Impact Strength
- Resistance to Oscillation & Vibration
|
Suitable For
- Cutting
- Sawing
- Shearing
- Punching
- Drilling
- Nailing
- Milling
- Rivetting
- Screwing
- Painting
- Printing
- Photo Mounting
- Embossing
- Engraving
|
Applications
- Advertising Signs
- Displays
- Exhibition Stands
- Interior Designs
- False Ceilings
- Walls and Partitions
- Door Constructions
- Window Shutters
- Office Accessories
- Bathroom Fittings
- Model & Prototypes
- Panels & Cabins
- Embossing & Engraving
- Point of Sale
|
|
Product Range |
| Colour Code |
Colour |
Thickness |
Std. Width |
Std. Length |
| mm |
inch |
mm |
inch |
| J1054 |
White |
8 to 30 mm |
1250 |
49 |
2000 |
79 |
| 1220 |
48 |
2440 |
96 |
| 3050 |
120 |
| 2440 |
96 |
| 4880 |
192 |
| 5490 |
216 |
| 6100 |
240 |
* Customized lengths available as per customer request
|
Technical Properties |
| Properties |
Test |
Unit |
Value |
Physical |
| Density |
DIN53479 |
g/cc |
0.50 to 0.60 |
| Hardness |
DIN53505 |
Shore 'D' |
≥ 55 |
Mechanical |
| Tensile Strength |
DIN53455 |
MPa |
≥ 11 |
| Elongation at Break** |
DIN53455 |
% |
≥ 10 |
| Charpy Impact Strength |
DIN 53253 |
KJ/M² |
≥ 15 |
| Flexural Strength |
DIN 53452 |
MPa |
> 30 |
| Compressive Strength at 10% Deformation |
DIN 53421 |
MPa |
> 3.0 |
Electrical |
| Surface Resistivity |
ASTM D 257 |
Ω |
> 1 x 1014 |
| Volume Resistivity |
ASTM D 257 |
Ω-cm |
> 1 x 1015 |
| Dielectric Constant at 1 MHZ |
ASTM D 150 |
- |
1.7 |
Thermal |
| Vicat Softening Temperature |
DIN 53460 |
ºC |
≥ 75 |
| Heat Deflection Temperature @ 1.8 MPa |
DIN 53461 |
ºC |
60 |
| Coefficient of Linear Expansion |
DIN 53752 |
mm/m ºC |
0.05 |
| Thermal Conductivity |
ASTM C 177 |
W/m K |
0.1 |
| Rate of Heat Transfer |
DIN 52616 |
W/m² K |
3.0 for 10 mm |
| 2.0 for 19 mm |
| 1.6 for 24 mm |
| 1.35 for 30 mm |
Flammability |
| UK |
BS 476 Part 7 |
|
Class 1 Y |
| France |
NFP 92-501 |
|
Class M1 |
| USA |
UL 94 |
|
V 0 |
|
| |
