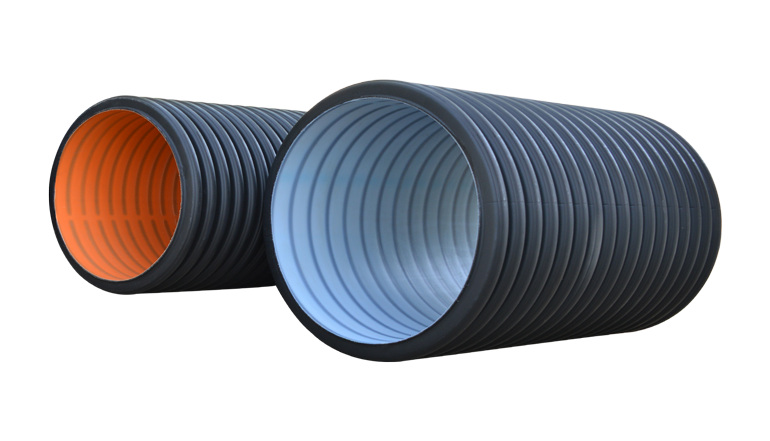

PE Double Wall Corrugated Drainage Pipes

  • Product range(mm): 75,100, 135, 150, 170, 200, 250, 300, 400, 500

Double Wall Corrugated is a low-cost product with the excellent quality solution for the Underground drainage system. It is used for the construction of the underground flow channels for the transportation of sewage water These pipes are manufactured as per IS 16098 (Part-2), have a smooth internal surface and corrugated external surface. DWC pipes are available in the size range from 75 mm to 500 mm with stiffness classes of SN-4 KN/m2 and SN-8 KN/m².

The lightweight PE allows for easier and less costly transportation and installation cost. Not brittle or rigidly hard, it is not easily susceptible to cracking during pipe handling and installation activities. Once formed into corrugated pipes, PE pipe is resistant to abrasion, corrosion, chemical scouring and is structurally strong with the ability to support large loads. PE corrugated pipe is a flexible piping system that performs well in both high cover and low cover applications. Its unique ability to support and distribute live and dead load enables it to meet almost every installation condition. PE corrugated pipe promises to be a long-term and cost effective solution to this problem.


Features & Benefits

  • Excellent earth load bearing strength
  • Abrasion resistant
  • ease of installation
  • excellent connectivity with manholes & chambers
  • corrosion resistance
  • durability (50+ years life)
  • watertight joints
  • minimize excavation cost
  • Hygienic & Safe, Light in weight and are economical.
  • Flexible yet strong
  • Flexible yet strong
  • No root intrusion
  • 100% watertight joints and free from underground ill effects
  • Rodent deterrent DWC pipes (On request)
