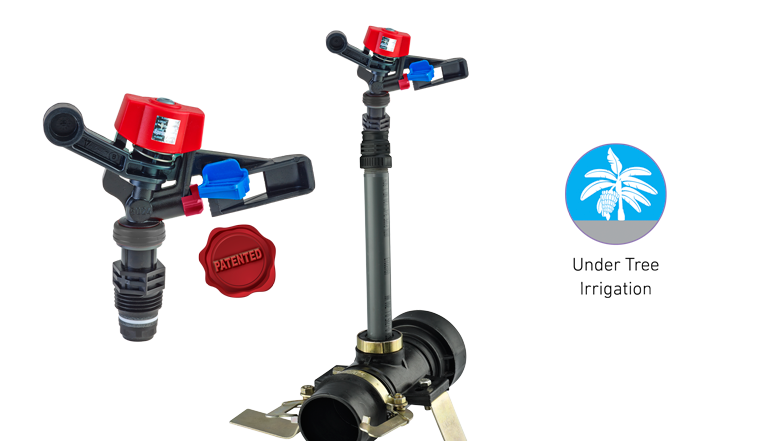

5024 SD


  • Flow Rates (lph): 430 to 965

  • Working Pressure (kg/cm²): 1.5 to 4.0

  • Wetted Diameter (m): 17.0 to 23.0


  • Orchards and plantations, especially table grapes and bananas, or any other full coverage irrigation in orchards

Features & Benefits

Low Angle Sprinkler for Under Tree Application
12° low angle body with lower trajectory for optimal under tree irrigation
Patented Super Diffuser Plate
Unique hammer with SD (super-diffuser) plate for uniform distribution
Innovative Bayonet Nozzle Design
Color-coded bayonet nozzles for easy service
Nozzles with Guide Vanes
Integrated stream straightening vanes provided in nozzles for maximum range
High Performance Washers
Long life Teflon washer helps to give uniform hassle free rotation
Threaded Inlet Connection
Available in 1/2" male BSP threaded connection
