Modular Sprinklers

Specification

  • Flow Rates (lph): 25 to 397

  • Working Pressure (kg/cm²): 1.0 to 3.5

  • Weteed Diameter (m): 8.0 to 10.5

Applications

  • Suitable for soils where adequate wetting is difficult to achieve and where water is available only for short periods
  • Unlimited combinations flow rates & wetting patterns for: - Irrigation in orchards, vegetables and gardens - Irrigation in greenhouses and shade houses - Cooling of poultry and livestock

Features & Benefits

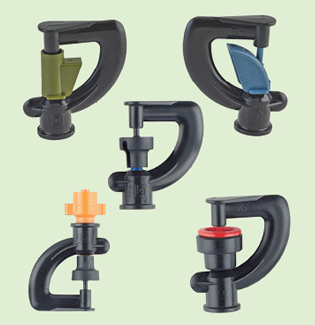

Available various options Complete range of microsprinklers and micro-jets
Specially designed side Ribs Single side smooth streamlined side ribs to secure the spinner and give minimum obstruction to water jet
Unique Spinner Design Specially designed spinning for uniform water distribution

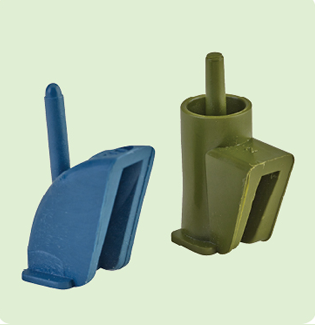

Optional Antimist Optional anti-mist device for higher distribution uniformity

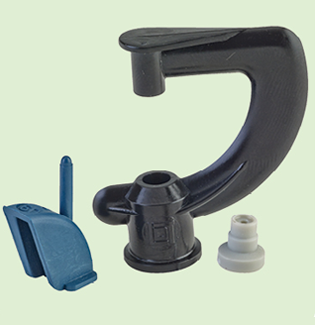

Detachable nozzle and spinner Offers ease in maintenance and inspection

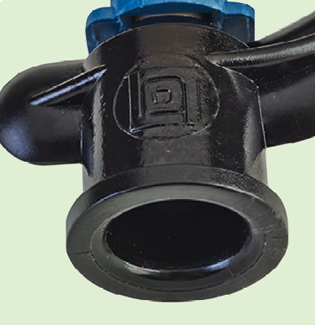

Tapered Inlet Connection For easy connectivity with assembly, 1/8" Push fit tapered inlet connection is available.
