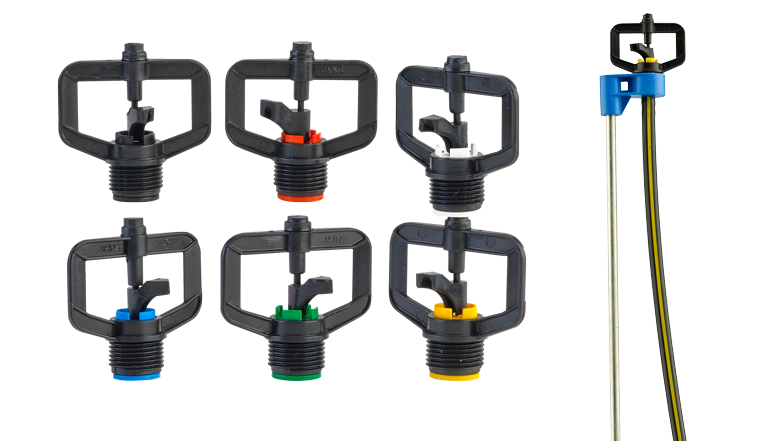

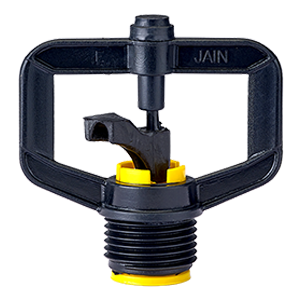

J-Mini Sprinklers


  • Flow Rates (lph): 16 to 180

  • Working Pressure(kg/cm²) : 1 to 3

  • Weteed Diameter (m): 2.4 to 8.8


  • Under-foliage irrigation
  • Useful in landscape, flower beds, shrubs and nurseries.
  • Suitable for soils where adequate wetting is difficult to achieve and where water is available only for short periods
  • Recommended for irrigation of vegetables, nurseries etc. with ‘Rainport™’ system

Features & Benefits

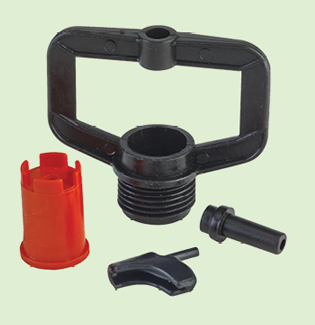

Detachable nozzle and spinnerOffers ease in maintenance and inspection

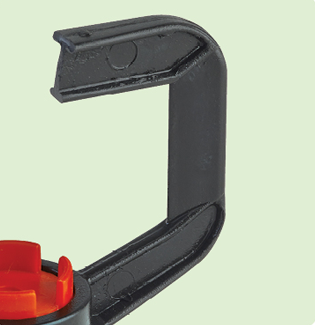

Specially designed Ribs Smooth streamlined side ribs to secure the spinner and give minimum obstruction to water jet.

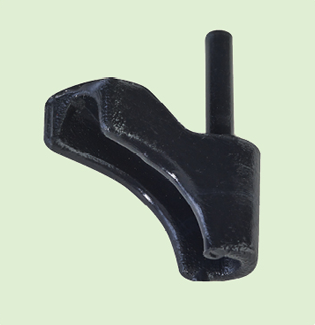

Unique Spinner Design Specially designed spinner for uniform water distribution

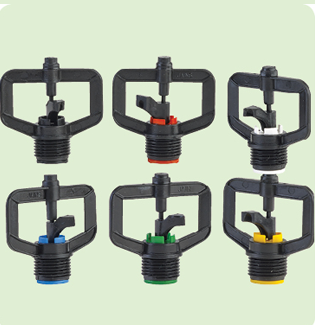

Colour codes for identification Color coded nozzle are available for different flow rates

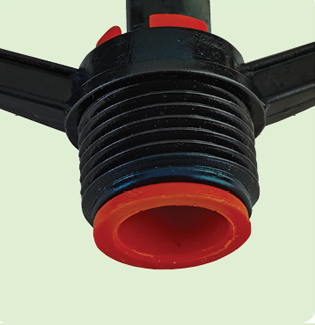

3/8" BSP male threaded inlet For ease in connectivity with assembly, 3/8" male BSP connection available.
Precision molded sprinkler for assured quality Confirming to Indian standard IS14605 and International Standard ISO 8026.
