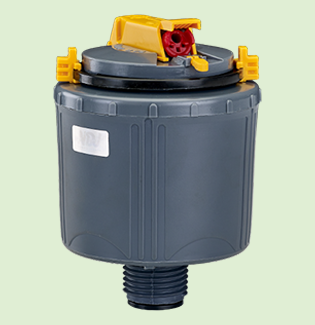

525 Sprinkler


  • Flow Rates (lph): 510 to 1180

  • Working Pressure (kg/cm²): 2.0 to 4.0

  • Wetted Diameter (m): 20.0 to 23.0

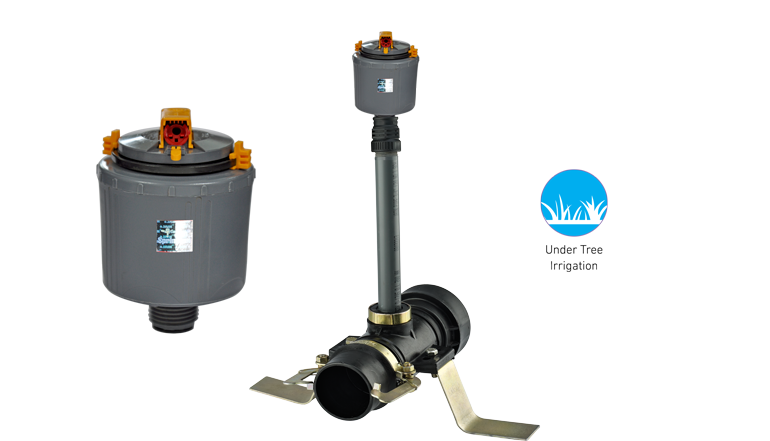

  • For residential and small public areas, also as hose-end on spike or sled bases

Features & Benefits

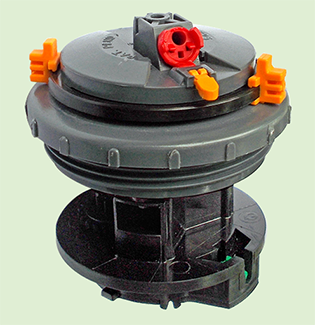

Innovative Sprinkler Design
Compact, sturdy, closed and fullor part-circle gear-driven sprinkler

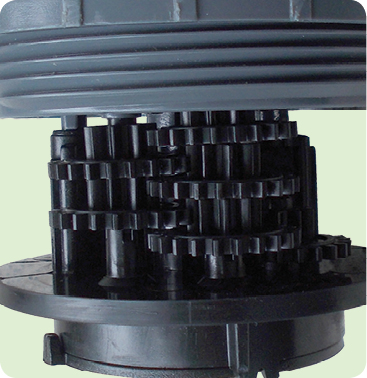

Gear-driven mechanism
Gear-driven mechanism provides quiet operation, ideal for early morning or late night irrigation

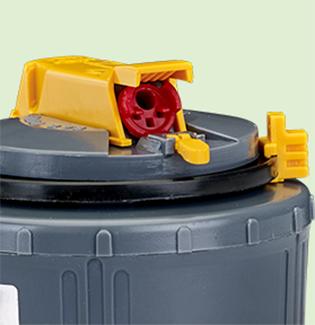

Easy fingertip adjustment
User-friendly, fingertip adjustment to full- or part-circle

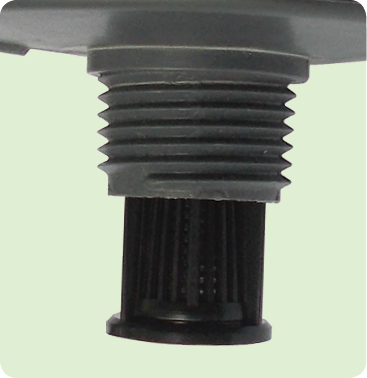

Special filter on Sprinkler

Removable filter screen eliminates nozzle clogging.
Innovative Baffle deflector

Innovative Baffle deflector allows radius adjustment: 5.0 to 11.5m

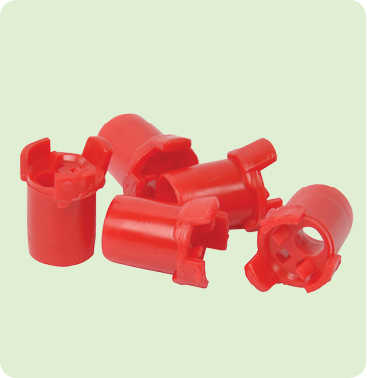

Bayonet nozzles

Bayonet nozzles with integrated stream straightening vanes in nozzles for maximum throw
