Discharge (lpm)6.03 to 51.28
Working Pressure (kg/cm²)3.0 to 9.0
Wetted Radius (m)37.8 to 82.4
![]() |
![]() |

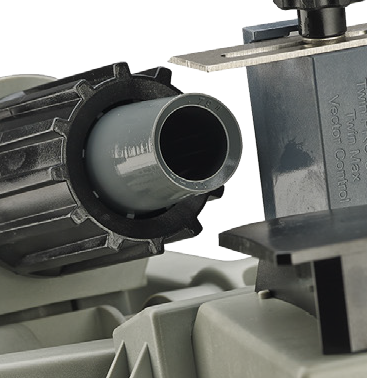

Hydraulically Designed Barrel and Taper Bore Nozzle Excellent hydraulic design, large barrel cross section and full size taper bore nozzle allows for maximum possible throw and performance |

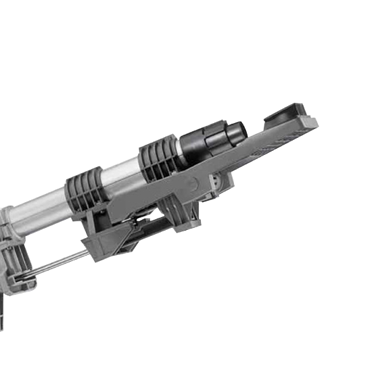

Optional Variable Trajectory Angle Model Optional variable trajectory angle model available which allows to change trajectory angle from 16° to 28° thus provides more uniformity even in windy conditions. |
![]() |
![]() |
Easy Stream Break-up Adjustment Three stream break-up frequencies can be selected manually, without tools, in order to adjust rotation speed and to optimize the water distribution. |

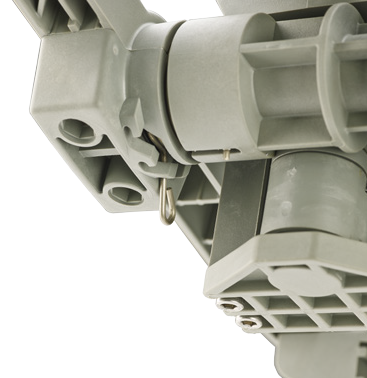

Patented Self-Compensating Break System Unique patented selfcompensating break system keeps overall performance constant over time. |
![]() |
![]() |

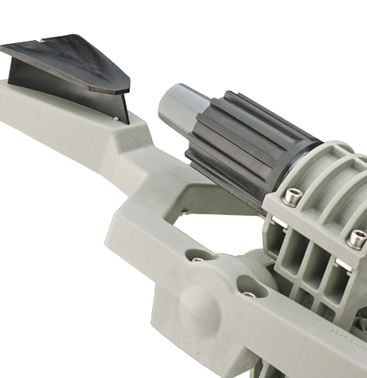

Intermittent Dynamic Jet Breaker Intermittent dynamic jet breaker option increases the stream diffusion which allows a more delicate irrigation for sensitive crop and provides flexibility in operation at lower pressure. |
Patented Drive System Patented drive system with excellent stream diffusion allows for smooth & steady operation. |
