Hydrojet AP 140


  • Flow Rates (lps)258.5 to 1849.8

  • Working Pressure (kg/cm²)3.0 to 8.0

  • Wetted Radius (m)35.0 to 63.5


  • For dust suppression, mining or environmental applications.

Features & Benefits

Hydraulically Designed Barrel and Taper Bore Nozzle
Excellent hydraulic design, large barrel cross section and full size taper bore nozzle allows for maximum possible throw and performance.
Optional Variable Trajectory Angle Model
The trajectory angle other than 440 are needed to suit specific stock pile configuration

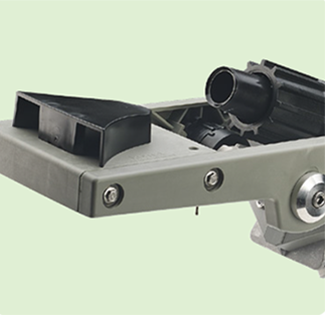

Easy Stream Break-up Adjustment
Three stream break-up frequencies can be selected manually, without tools, in order to adjust rotation speed and to optimize the water distribution

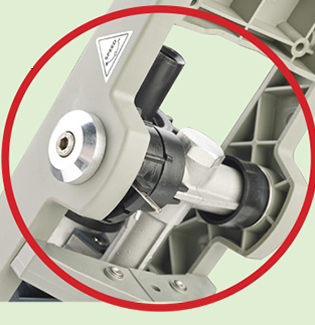

Patented Self-Compensating Break System
Unique patented selfcompensating break system keeps overall performance constant over time

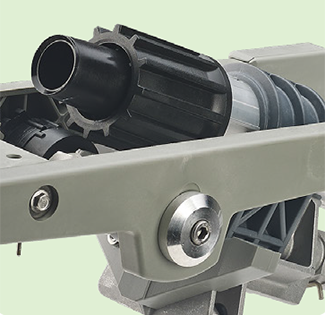

Patented Drive System
Patented drive system with excellent stream diffusion allows for smooth & steady operation.
Available in Full Circle and Part/Full Circle Models
Available in full circle and part/ full circle models with seven interchangeable nozzles to meet discharge and radius requirements.
