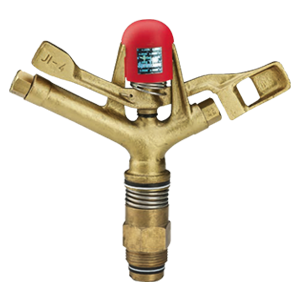

JI - 4 Sprinkler

All Products..

Sprinkler Irrigation

download pdf file

JI - 4 Sprinkler

Specification

  • Discharge: (lpm)62 to 94

  • Working Pressure (kg/cm²)2.5 to 5.0

  • Wetted Radius:: (m)17 to 19.5

Applications

  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops

Features & Benefits

  • Heavy Duty Retraction Spring Stainless steel retraction spring maintains uniform rotation speed
  • Innovative Swing Arm Well balanced swing arm ensures smooth and uniform rotation
  • Stainless Steel Spindle, Fulcrum Pin Stainless steel spindle, fulcrum pin for improving life of sprinkler
  • Hydrodynamically Designed Nozzles Brass nozzles with hydrodynamically designed inner profile for precise jet and longer radius of throw
  • Equipped With Quality Washers Special washers used to give uniform & hassle free rotation along with leakage prevention
  • Threaded Inlet Connection 1" male threaded inlet connection for connectivity with system
  • Full circle impact sprinkler
  • Corrosion proof I-beam construction for added strength
  • Easy to install and maintain
  • Uniform precipitation rate
  • Each batch is tested for stringent quality parameters
