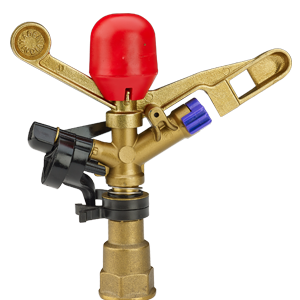

233 B PC


  • Flow Rates (lpm)1040 to 2100

  • Working Pressure (kg/cm²)3.0 to 5.0

  • Wetted Radius (m)14.0 to 17.5


  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.

Features & Benefits

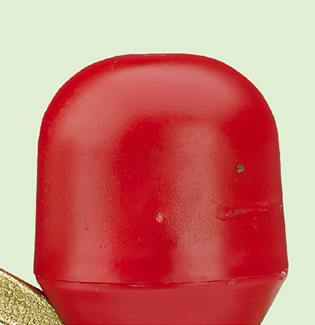

Red Cap For Protection
Completely closed plastic protection cap protects the spring from sand, frost gives longer life to sprinkler and sprinkler can work in frosting area

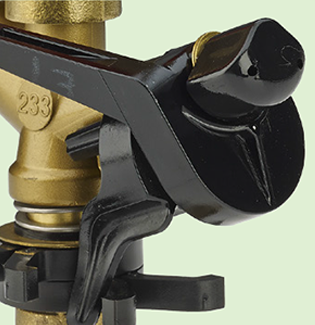

Finger-Tip Adjustment
User friendly, Stainless Steel fingertip adjustment to part circle mechanism

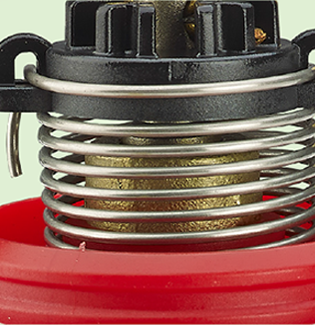

Heavy Duty Retraction Spring with Spring Guide
Stainless steel retraction spring maintains uniform rotation speed, spring guide ensures uniform performance of spring

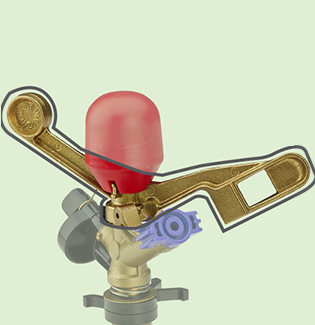

Innovative Swing Hammer
Well balanced swing hammer ensures smooth and uniform rotation

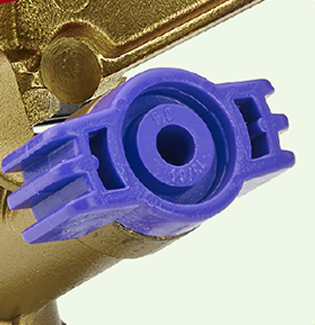

Hydrodynamically Designed Bayonet Nozzles
Rigid Bayonet nozzles with hydrodynamically designed inner profile for precise jet and longer radius of throw

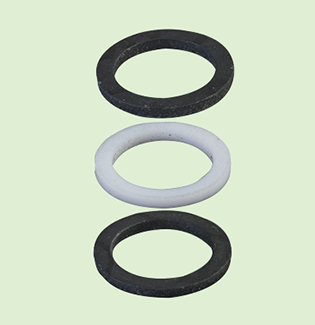

Equipped with Quality Washers.
Special washers used to give uniform & hassle free rotation along with leakage prevention
