5035 G Sprinkler

All Products..

Sprinkler Irrigation

download pdf file

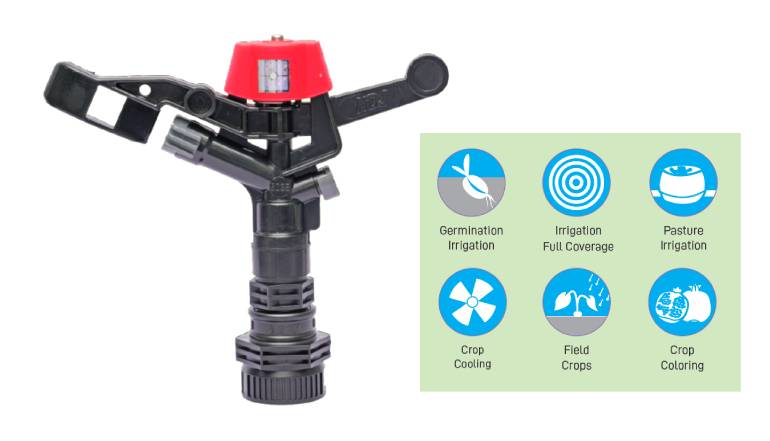

5035 G Sprinkler

Specification

  • Discharge (lph): 3000 to 4600

  • Operating Pressure (bar): 3.0 to 5.0

  • Diameter (m): 34 to 36

Applications

  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.

Features & Benefits

  • 1” Inlet Female Thread Connection Grand - 1” inlet connectioin sutailble for long range
  • Red Cap for Protection of SS Spring Plastic protection cap protects the spring from sand gives longer life to sprinkler
  • Heavy Duty Retraction Spring Stainless steel retraction spring maintains uniform rotation speed
  • Innovative Bayonet Nozzles Integrated stream straightening vanes in nozzles for maximum throw
  • Stainless Steel Spindle, Fulcrum Pin Stainless steel spindle, fulcrum pin for improving life of sprinkler with anti-self rotation arrangement
  • Equipped with High Performance Washers Special washers used to give uniform & hassle free rotation along with leakage prevention
