5035 SD Sprinkler


  • Flow Rates (lph): 720 to 3540

  • Working Pressure (kg/cm²): 2.5 to 5.0

  • Wetted Diameter (m): 24.0 to 36.0


  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.

Features & Benefits

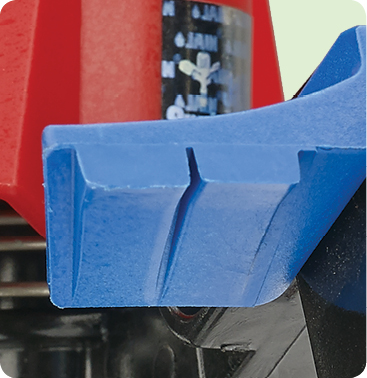

Unique Hammer With SD Plate
Unique hammer with SD (super-diffuser) plate design for uniform distribution

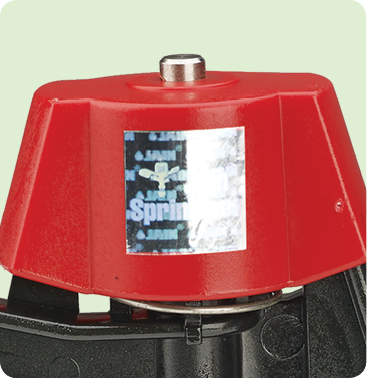

Red Cap for Protection of SS Spring
Plastic protection cap protects the spring from sand gives longer life to sprinkler.

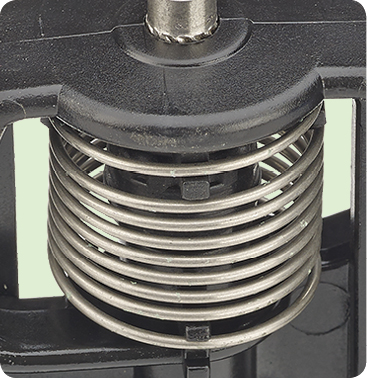

Heavy Duty Retraction Spring
Stainless steel retraction spring maintains uniform rotation speed.

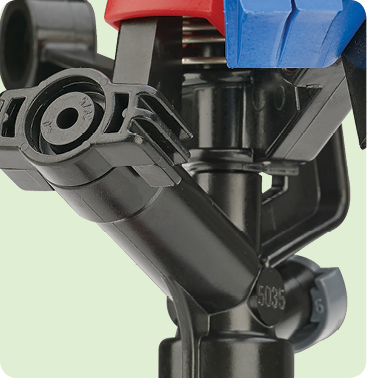

Innovative Bayonet Nozzles
Integrated stream straightening vanes in nozzles for maximum throw

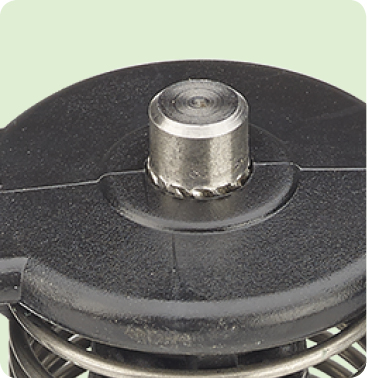

Stainless Steel Spindle, Fulcrum Pin
Stainless steel spindle, fulcrum pin for improving life of sprinkler with anti-self rotation arrangement

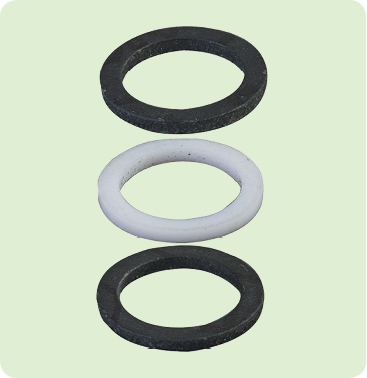

Equipped with High Performance Washers
Special washers used to give uniform & hassle free rotation along with leakage prevention
