5035 SD PC Sprinkler
5035 SD PC Sprinkler
Specification
-
Flow Rates (lph): 720 to 2100
-
Working Pressure (kg/cm²): 2.5 to 5.0
-
Wetted Diameter (m): 26.0 to 34.0
Applications
- Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops
- Used for irrigation of edges in various field crops
Features & Benefits
 |
 |

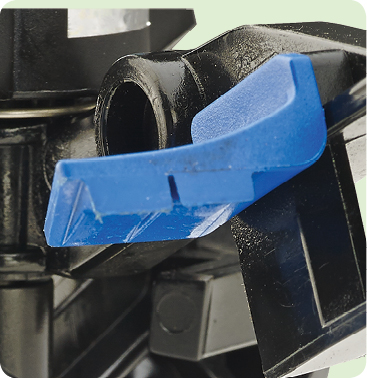

Unique Hammer & SD Plate Unique hammer with SD (super-diffuser) plate design for uniform distribution |

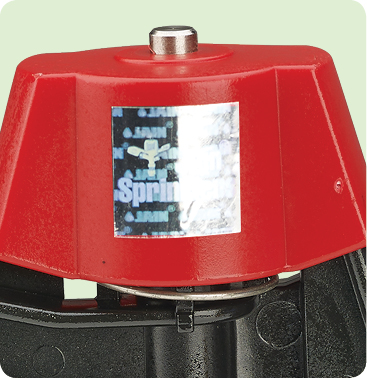

Red Cap for Protection of SS Spring Plastic protection cap protects the spring from sand gives longer life to sprinkler |
 |
 |

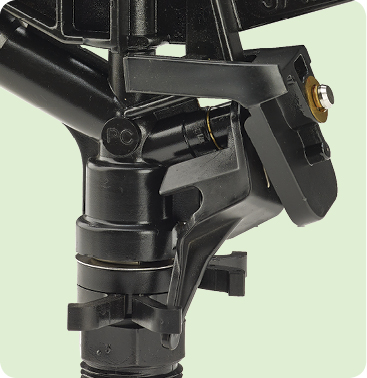

Finger Tip Adjustment User friendly, Stainless Steel fingertip adjustment to part circle mechanism |

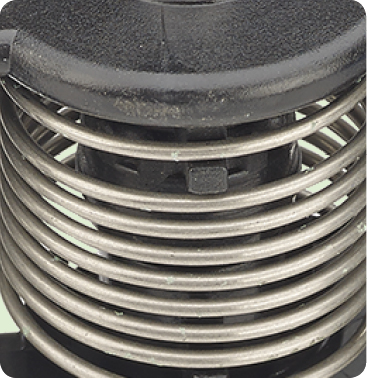

Heavy Duty Retraction Spring Stainless steel retraction spring maintains uniform rotation speed |
 |
 |

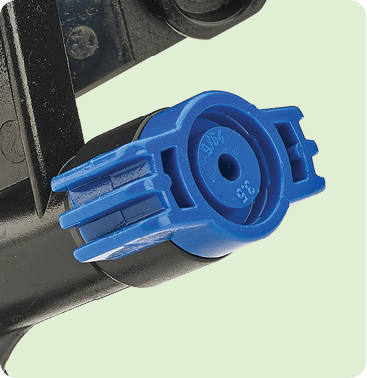

Innovative Bayonet Nozzles Integrated stream straightening vanes in nozzles for maximum throw |

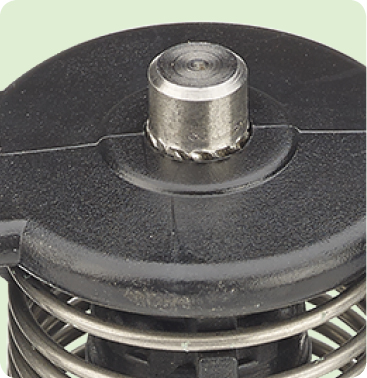

Stainless Steel Spindle, Fulcrum Pin Stainless steel spindle, fulcrum pin for improving life of sprinkler with anti self rotation arrangement |
