5035 SD LP


  • Flow Rates (lph): 1210 to 2490

  • Working Pressure (kg/cm²): 1.5 to 4.0

  • Wetted Diameter (m): 24.5 to 35.2


  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.

Features & Benefits

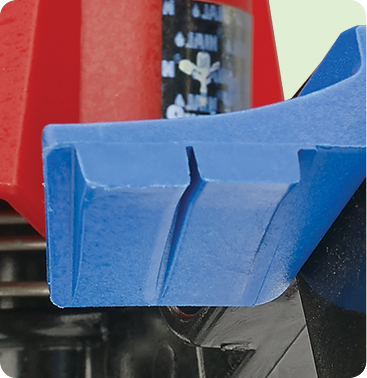

Unique Hammer With SD Plate
Unique hammer with SD (super-diffuser) plate design for uniform distribution.

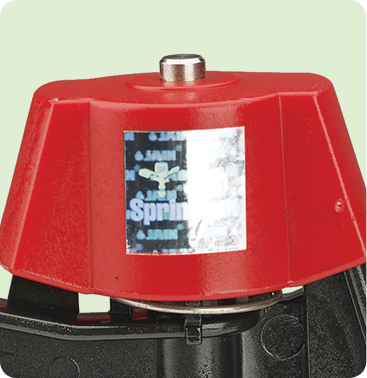

Red Cap for Protection of SS Spring
Plastic protection cap protects the spring from sand gives longer life to sprinkler

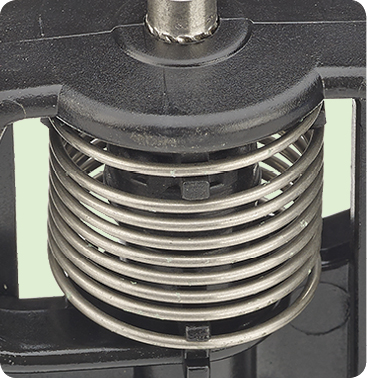

Heavy Duty Retraction Spring
Stainless steel retraction spring maintains uniform rotation speed

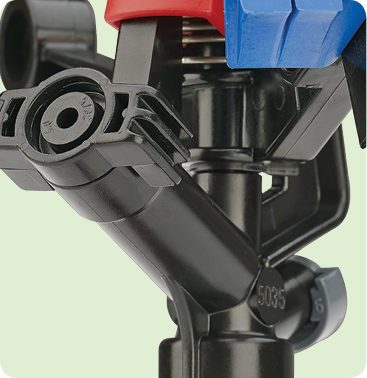

Innovative Bayonet Nozzles
Integrated stream straightening vanes in nozzles for maximum throw

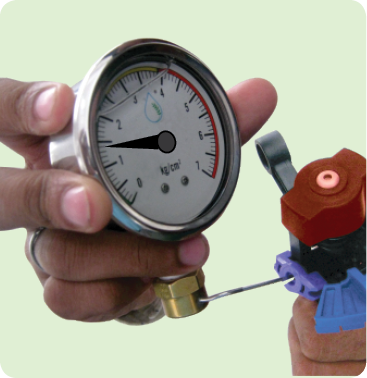

Operates at low Pressure
Special sprinkler which operates at 1.5 kg/cm2 pressure

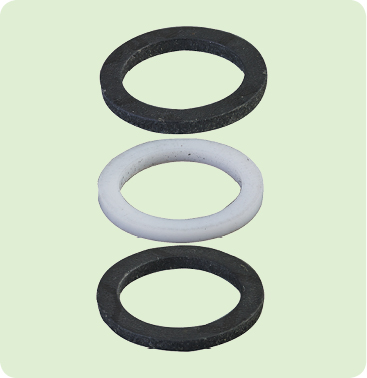

Equipped with High Performance Washers
Special washers used to give uniform & hassle free rotation along with leakage prevention
