5022 SD Sprinkler


  • Flow Rates (lph): 570 to 1430

  • Working Pressure (kg/cm²): 2.5 to 4.0

  • Wetted Diameter (m): 21.0 to 26.0


  • Recommended for closely spaced field crops, such as potato, leafy vegetables, cotton, oil seeds, pulses, cereals and fodder crops.
  • Irrigation and germination of vegetables, flowers and nursery crops.
  • Suitable for landscape, shrubs and turf irrigation.
  • Suitable to use with Jain Rainport Systems.

Features & Benefits

Patented Super Diffuser Plate
Unique hammer with SD (super-diffuser) plate design for uniform distribution
Red Cap for Protection
Plastic protection cap protects the spring from sand and gives longer life to sprinkler
Heavy Duty Retraction Spring
Heavy duty stainless steel fulcrum pin and strong and reliable SS spring

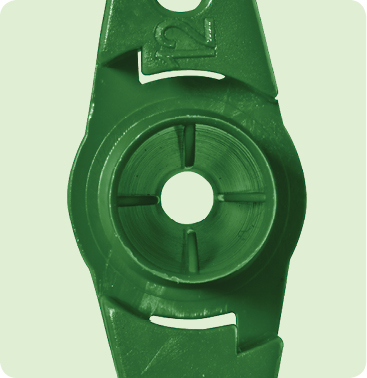

Innovative Bayonet Nozzle Design
Integrated stream straightening vanes in nozzles for maximum throw.
High Performance Washer
Long life Teflon washer helps to give uniform & hassle free rotation.

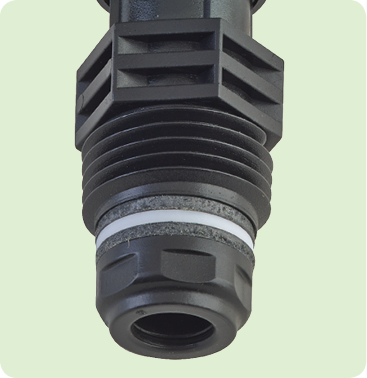

Threaded Inlet Connection
For connectivity with assembly 1/2" male threaded inlet connection is available
