423 AG


  • Flow Rates (lpm): 570 to 1180

  • Working Pressure (kg/cm²): 2.0 to 4.0

  • Wetted Diameter (m): 11.5 to 14.0


  • Suitable for field crops like pulses, oil seeds, vegetables, sugarcane, cotton, cereals, tea, coffee and fodder crops.
  • For efficient irrigation of field edges.

Features & Benefits

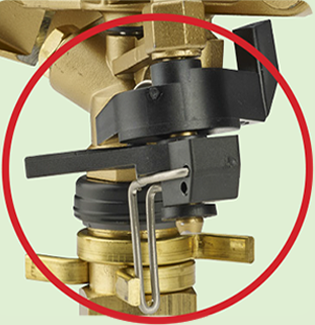

Finger Tip Adjustment
User friendly, Stainless Steel fingertip adjustment to part circle mechanism

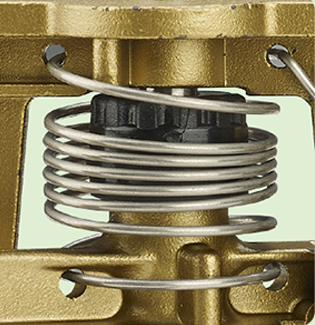

Special Design Retraction Spring
Stainless steel retraction spring maintains uniform rotation speed

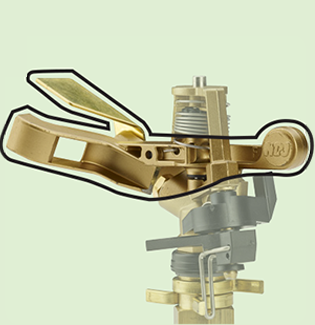

Innovative Swing Hammer
Well balanced swing hammer ensures smooth and uniform rotation

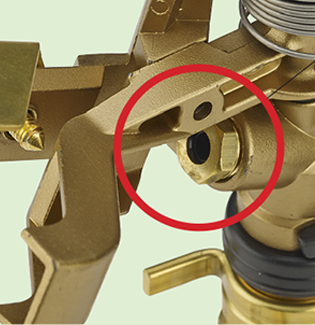

Hydrodynamically Designed replaceable Nozzles
Rigid replaceable nozzles with hydrodynamically designed inner profile for precise jet and longer radius of throw

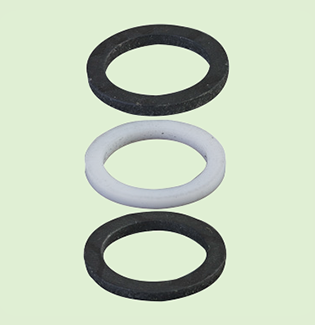

Equipped with Quality Washers.
Special washers used to give uniform & hassle free rotation

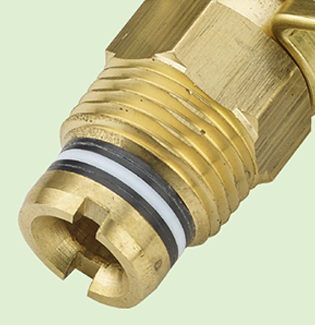

Threaded Inlet Connection
1/2" male threaded and 3/4" female threaded inlet connection for connectivity- with system
