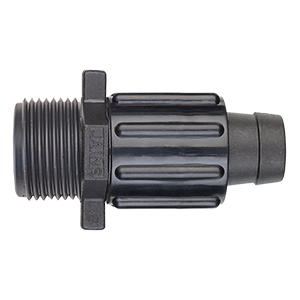

Tape Loc®- Threaded Adaptor

Technical Specifications

Model Code Bag Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
12 ID x ½" CTA1212 50 2400 20.2 B
12 ID x ¾" CTA1234 50 2200 20.5 B
16 ID x ½" CTA1612 50 1000 13.4 B
16 ID x ¾" CTA1634 50 1000 13.9 B
22 ID x ½" CTA2212 50 750 17.0 B
22 ID x ¾" CTA2234 50 650 17.0 B

Applications

  • Male threaded adaptor is used to connect driptape to respective sized threaded connection

Features & Benefits

  • Tape Lock Provision: Special Cap provided to lock the thin wall thickness tube
  • Additional Front Barb: Additional front start barb provided to hold the tube
  • Manufactured from tough engineering plastic
  • Non corrosive & resistant to chemicals
  • UV resistant fittings
