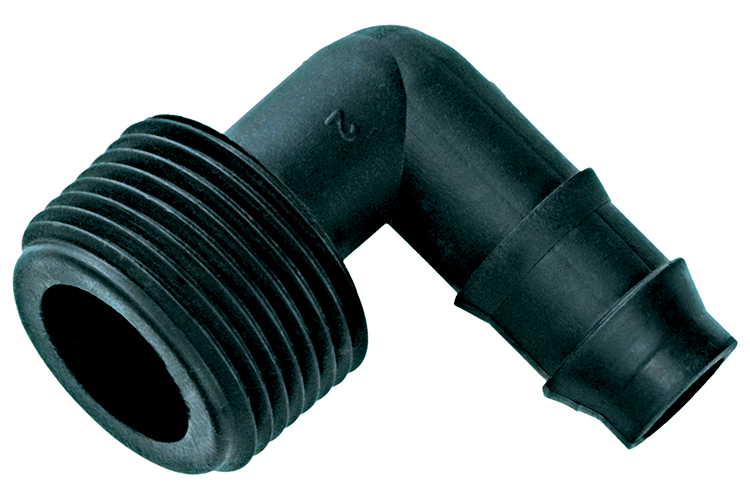

Poly Threaded Elbow

Technical Specifications

Size Tube x Thread mm x inch(BSPT) Code Bag Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
13 ID x ½" TEI1312 100 2400 13.4 B
16 ID x ½" TEI1612 100 2000 17.8 B
16 ID x ¾" TEI1634 50 2000 21.2 B

Applications

  • Threaded Elbow is used to connect plain laterals in angular direction i.e 90 deg. to a threaded connection

Features & Benefits

  • Manufactured from tough engineering plastic
  • Non corrosive & resistant to chemicals
  • UV resistant fittings
