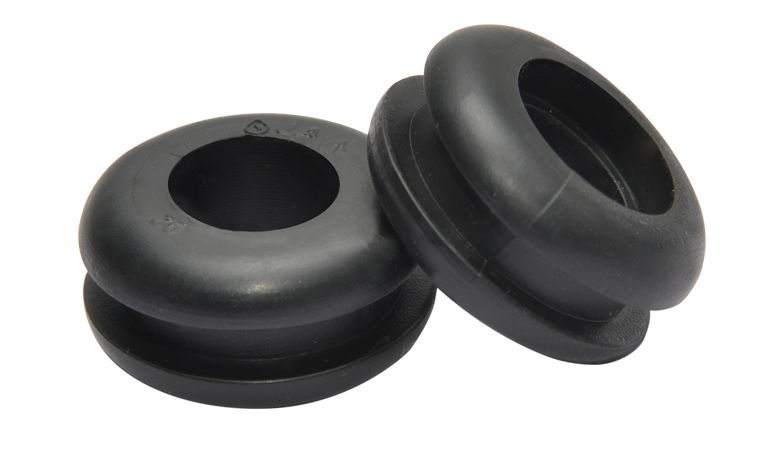

  • Used to connect PVC submain to plain lateral by using takeoff

Features & Benefits

  • Straight outer walls for easy installation.
  • Converging inside walls pushed against the pipe hole surface to provide leak proof sealing.
  • Nominal working pressure 4 kg/cm2 suitable for drip irrigation applications.
  • Maximum working pressure 6 kg/cm2.
  • Manufactured with high grade thermoplastic rubber to provide high elastic properties with strength of plastic.
  • Precision injection moulding provides dimensional stability.

Technical Specifications

Grommet x drill(mm * mm) Code Bag Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
08 x 11.9 JGRO08 100 10000 11.4 B
13 x 17.5 JGRO013 100 5000 13.4 B
