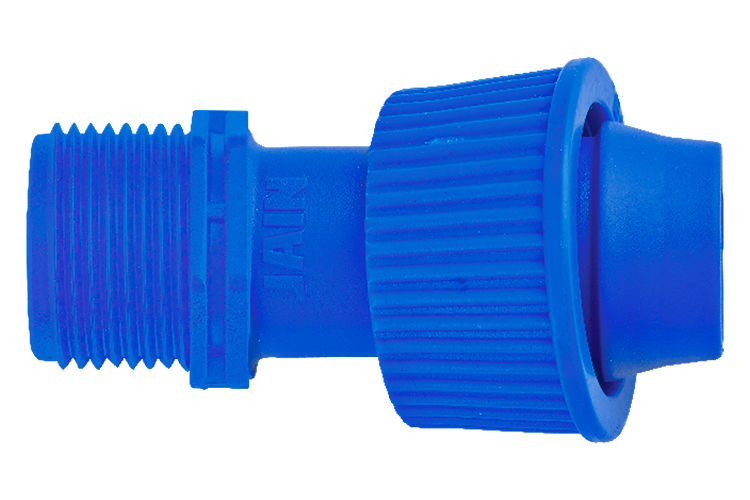

Emitting Pipe Threaded Adaptor
Emitting Pipe Threaded Adaptor
Applications
- Threaded adaptor is used to connect dripline to respective sized threaded connection
Features & Benefits
- Ribs on tapered side: Innovative ribs provided to prevent snap out of tube.
- Innovative Cap for holding: Special cap provided to hold tube from outer side.
- Easy leak-proof connection
- Manufactured from tough engineering plastic
- Non corrosive & resistant to chemicals
- UV resistant fittings
Technical Specifications
| Tube x Thread mm x inch(BSP) | Code | Bag | Box | ||
| Qty (nos.) | Qty (nos.) | Wt(kg) | Code | ||
| 12 OD x ½" | EPTA1212 | 100 | 2400 | 15.3 | B |
| 16 OD x ½" | EPTA1612 | 100 | 2200 | 17.0 | B |
| 20 OD x ½" | EPTA2012 | 50 | 1500 | 14.9 | B |
| 12 OD x ¾" | EPTA1234 | 50 | 2200 | 15.7 | B |
| 16 OD x ¾" | EPTA1634 | 50 | 2000 | 17.2 | B |
| 20 OD x ¾" | EPTA2034 | 50 | 1200 | 13.0 | B |
