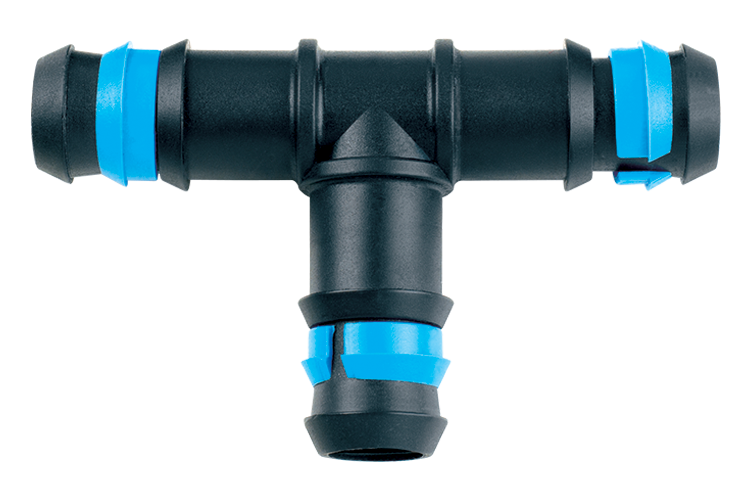

Dripline Tee

Technical Specifications

Tube Size(mm * mm) Code Bag
Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
12x12x12 OD TLT12 100 3000 11.2 B
20x12x20 OD TLT2012 100 800 9.5 B
16x16x16 OD TLT1612 100 1500 11.6 B
16x12x16 OD TLTA1234 100 2500 22.4 B
20x16x20 OD TLT1612 100 1500 11.6 B
20x16x20 OD TLT2016 100 800 9.7 B
20x20x20 OD TLT20 100 800 11.4 B

Applications

  • Tee is used to connect three driplines together OR to takeout an outlet from respective dripline

Features & Benefits

  • Split ring for tube holding: Additional split ring provided for tube holding
  • Special Three barb fitting: Two steady barbs and one flexible barb provided to prevent snap out from tube.
  • Manufactured from tough engineering plastic
  • Non corrosive & resistant to chemicals
  • UV resistant fittings
