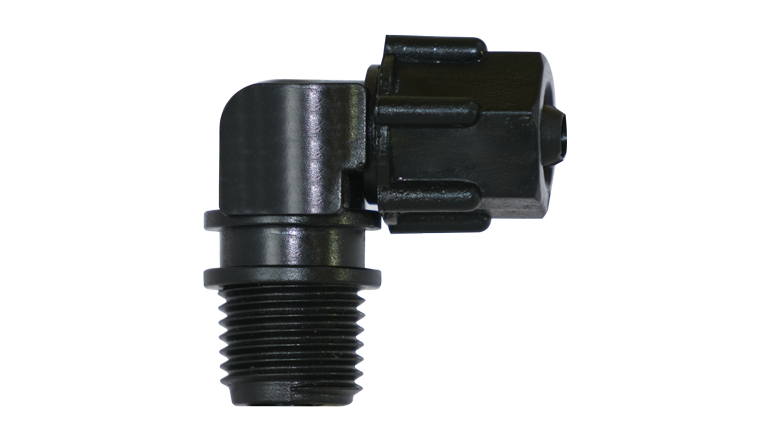

Hydraulic Threaded Elbow

Technical Specifications

Size mm * inch Code Bag Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
8 x 1/8" (BSP) HTE818 100 4000 26.7 B
8 x ¼" (BSP) HTE814 100 3000 20.0 B
8 x 1/8" (NPT) HTE818N 100 4000 26.7 B
8 x ¼" (NPT) HTE814N 100 3000 20.0 B

Applications

  • Threaded Elbow is used to connect extension tube in angular direction i.e 90 deg. to a threaded connection

Features & Benefits

  • Additional barbs provided: Additional barbs provided to prevent snap out of 8 mm tube
  • Innovative threaded Cap for holding: Special cap provided to hold tube from outer side.
  • Available with standard BSP threads, For NPT threads please add suffix N to ordering code
  • Manufactured from tough engineering plastic
  • Non corrosive & resistant to chemicals
  • UV resistant fittings
