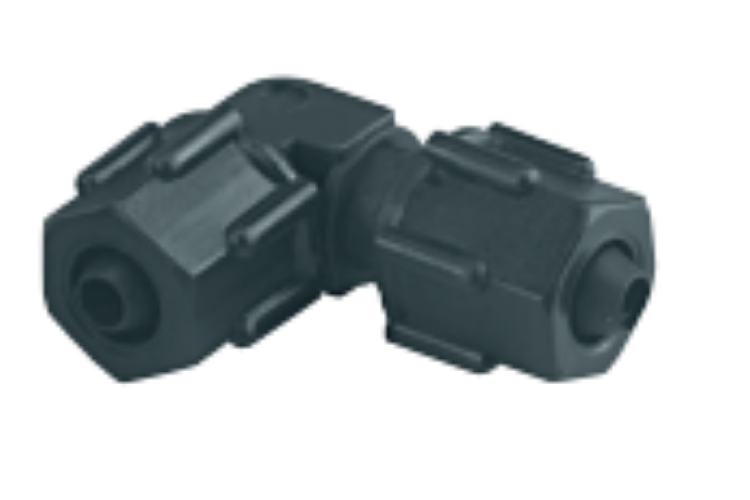

Hydraulic Elbow

Technical Specifications

Size mm * mm Code Bag Box
Qty. (nos.) Qty (nos.) Wt(kg) Code
8 x 8 HTE8 100 3000 28.0 B


  • Elbow is used to connect twoextension tubes in angular direction i.e 90 deg.

Features & Benefits

  • Additional barbs provided: Additional barbs provided to prevent snap out of 8 mm tube
  • Innovative threaded Cap for holding: Special cap provided to hold tube from outer side.
  • Available with standard BSP threads, For NPT threads please add suffix N to ordering code
  • Manufactured from tough engineering plastic
  • Non corrosive & resistant to chemicals
  • UV resistant fittings
