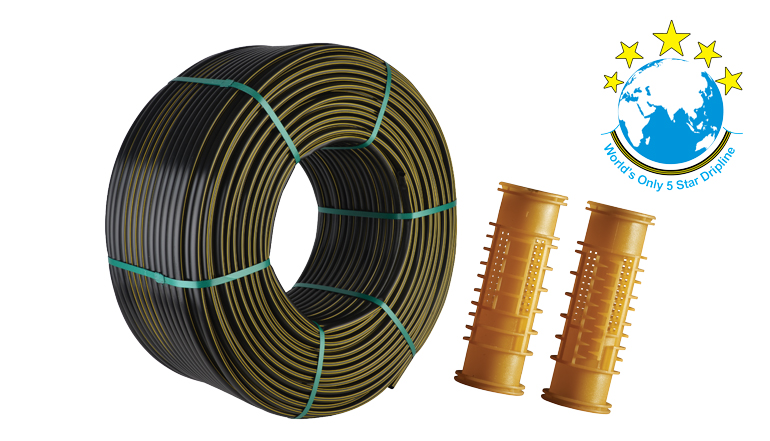

J-Turbo Line ® Super

Specification

  • Sizes (mm): 12, 16, 20

  • Emitter Spacings (cm): 20, 30, 40, 50, 60, 75, 90, 100

  • Nominal Discharges (lph):
    12 mm: - 2.3, 4.0
    16mm - 1.1, 2.2, 4.0, 8.0
    20mm - 2.2, 4.0

Applications

  • J-Turbo Line Super is recommended for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, vegetables, spices, biofuel crops, floriculture, etc.
  • Recommended to use in greenhouses and nurseries.
  • Suitable for landscape, shrubs and turf irrigation.
  • Used for widely spaced horticultural plants like mango, citrus, guava, apple etc. in group spacings.
  • Suitable for multi-seasonal applications.
  • Suitable for surface as well as sub surface installations.
  • With its fine filter, large filtration area and clog resistant Cascade labyrinth, J-Turbo Line® Super is a perfect product for Mining Applications.

Features & Benefits

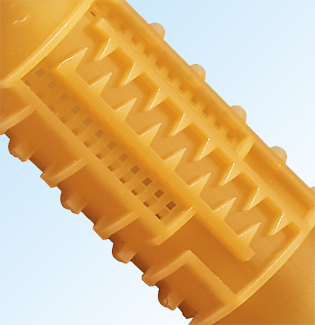

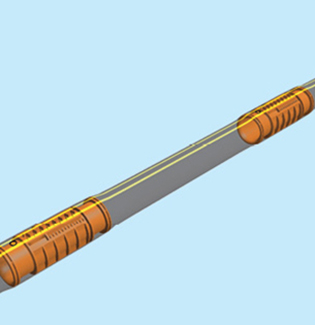

Cylindrical Dripline with Straight Labyrinth
Straight and wide labyrinth design without many torturous turnings makes the dripper truly clog resistant.

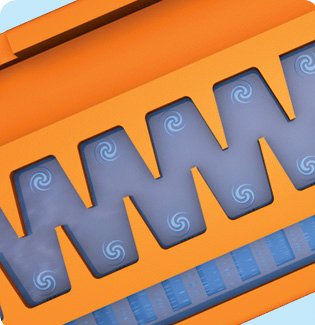

Innovative Cascade Labyrinth
Hydrodynamically designed cascade tooth structure helps to create double flow regime viz.central curving flow and turbulent cyclone in the dripper. this helps in continuous flushing of particles

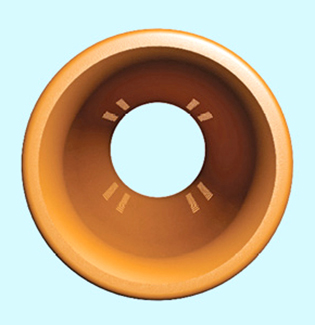

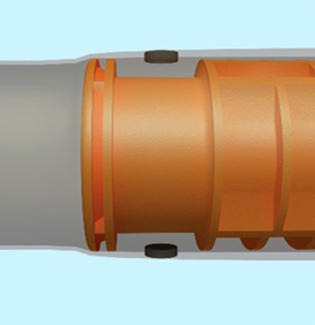

Through Bore Dripper
Hydrodynamic through bore design provides least obstruction to flow. Helps to achieve longer running lengths.

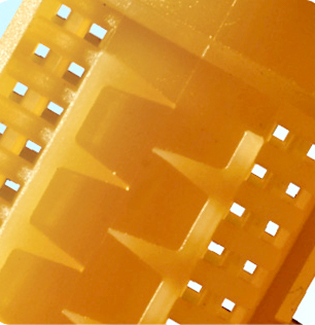

Highest Filtration Area with Finest Inlet Filters in the Industry
High precision inlet filters much smaller than cross sectional area of the emitter, placed on opposite sides prevents entrance of fine particles and ensures continuous water flow even in problematic water conditions.

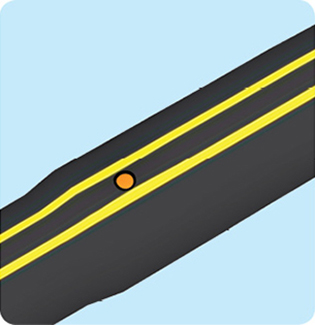

Laser Drilled Multiple Outlet Holes
Precision laser drilled outlet gives uniform and clear opening. Multiple outlets breaks vacuum, prevents sand suction. Standard 2 outlets. Multiple outlets on the same orifice bath or on the opposite orifice bath can be supplied on demand.
Manufactured with Most Modern, State-Of-the-Art Equipment.
It’s computerised continuous online quality control monitors emitter spacing and precision in outlet drilling. Ensures reliable quality and consistent performance.
Marked with Two Parallel Yellow Stripes ‘Twin- Line®’
Our copyright marking of two parallel yellow line ‘Twin Line®’ assures a best quality product.

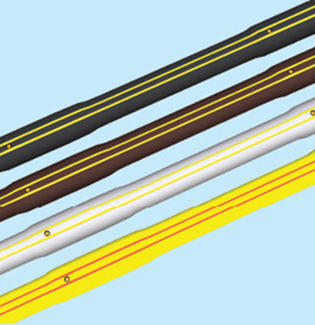

Flexibility in color selection
Black-for agriculture,
Brown-for landscape application,
White-for greenhouse application,
Purple-for reclaimed water application.
