Turboline PC® Emitter


  • Nominal Discharges (lph)
    16mm - 1.1, 1.6, 2.2, 3.5
    20mm - 0.9, 1.6, 2.2, 3.8

  • Pressure Compensating Range0.8 to 4 kg/cm² (7 to 71 psi)


  • Ideal for irrigation of closely spaced row crops like sugarcane, cotton, banana, strawberry, floriculture, vegetables and spices.
  • Suitable for surface as well as sub-surface irrigation.
  • Recommended for undulating terrain & steep slopes and where longer lateral running length is necessary.
  • Open field application to maintain high field application efficiency.
  • Suitable for low operating pressure/ Gravity feed irrigation system.

Features & Benefits

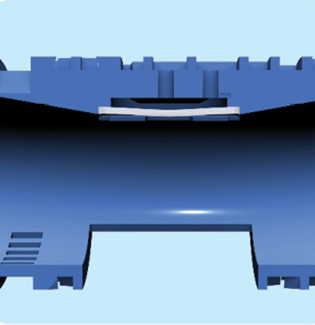

Integral, Cylindrical, Pressure Compensating Dripline

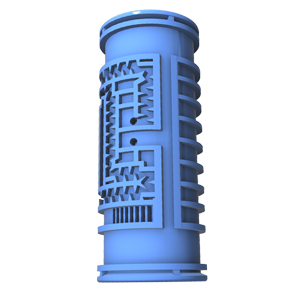

State-of-the-art cylindrical PC (Pressure Compensating) dripper ensures highest durability and excellent performance.
Precision Pressure Compensation

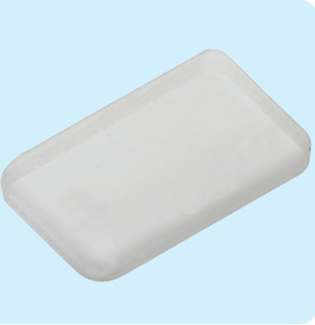

Injection moulded silicone diaphragm ensures precision in pressure compensation helps to maintain high discharge uniformity with diverse water qualities, chemicals and fertilizers.

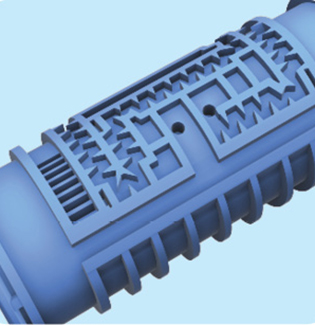

Individual Double Filter
Individual double filter and flushing mechanism for maximal clog resistance and self-cleaning.
Dynamic Self Cleaning mechanism
Dynamic movement of diaphragm retracts dynamically to throw away particles which are blocking the emitter.
Facility for Multiple Outlet Holes
Facility for multiple outlets which breaks vacuum, prevents sand suction.
Options Available for various sizes as well as discharge rates
16 mm & 20 mm sizes available with different flowrates to fulfil the market demand.
