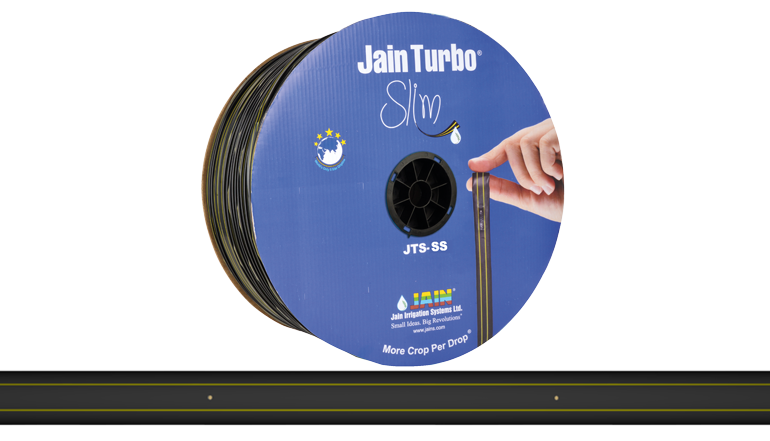

Jain Turbo Slim ® – SS

Specification

  • Sizes (mm): 14.2, 18

  • Emitter Spacings (cm): 15, 20, 30, 40, 50, 60, 75, 90, 100, 120, 150

  • Nominal Discharges (lph): 0.8, 1.2, 1.5, 2.1, 4.0

Applications

  • Jain Turbo Slim® SS is ideal for irrigation of closely spaced row crops like sugarcane, potato, cotton, banana, strawberry, lettuce, cabbage, tomatoes, chillies, pepper, melons, cucumber, floriculture, vegetables and spices.
  • Recommended to use in greenhouses and nurseries.
  • Suitable for surface as well as sub surface installations.

Features & Benefits

Seamless Drip TapeJain Turbo Slim™ features drippers permanently fixed inside a seamless tape construction, enhancing its ability to withstand pressure fluctuations.
Sizes Analogus with IS 13488 The sizes, equivalent to the IS 13488 standard, are available with inner diameters of 14.2mm and 18mm. These sizes are designed to enable a smooth transition to thick-walled tubing without the need to modify the hydraulic system.
Suitable Tape Loc Fitting Available Tape Loc fitting suitable for 14.2mm and 18mm ID tubing and wall thickness of 5 to 20mil (0.13 to 0.4mm) is readily available in different options.
Precision Engineering Features precision laserdrilled outlet holes for optimal performance.
Clog Resistant Cascade Labyrinth The hydrodynamically designed tooth structure creates a double flow regime and a turbulent cyclone within the dripper, enabling continuous flushing of particles and offers high clog resistance.
Prevention of sand suctionThe weir structure is designed to prevent the entry of sand particles into the flow path.
Three Dimensional Inlet Filter The unique 3-D filtration surface, featuring length, width, and depth, ensures clog-free operation even under high-risk clogging conditions.
Light Weight and Compact The lightweight and compact dripper is designed to weld perfectly to the thin wall thickness of the tubing without leaving stress marks.
