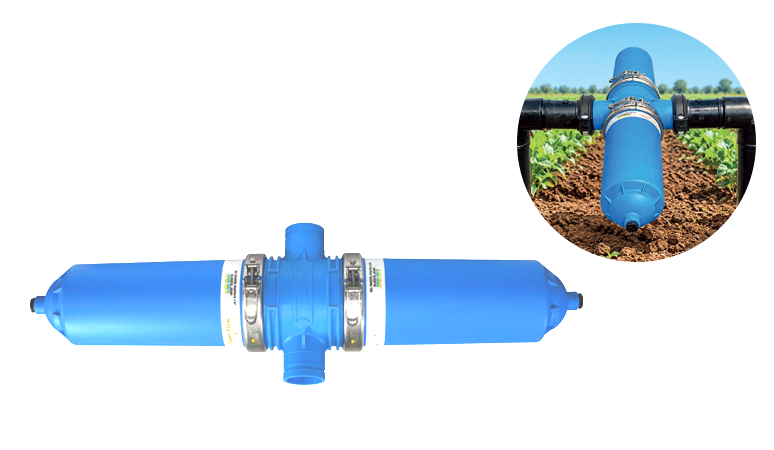

Jain Super Flow - Dual
Jain Super Flow - Dual
Specification
-
Sizes (inch): 3", 4"
-
Nominal flow rate(m³/hr): 60, 70, 80, 90
-
Max. working pressure(bar) : 8
Features & Benefits
- High Flow Capacity: Efficiently handles large water volumes—typically ranging from 60 to over 90 m³/hr depending on pipe size (such as 3-inch or 4-inch models).
- Low Pressure Loss: The parallel dual-body design minimizes pressure drop across the system while maintaining a steady downstream flow.
- Durable Construction: Built from UV-stabilized engineering plastics construction to resist fertilizers & chemicals used in agriculture, and harsh environmental conditions.
- Easy Maintenance: Includes integrated ¾” drainage ports on both barrels for quick flushing and removable cartridges for manual cleaning.
- Smart Clean Element Slotted, ribbed cartridge maintains water flow even during partial screen clogging, ensuring low pressure drop and longer cleaning intervals.
- Robust Twill-Weave Screen Twill-weave stainless steel screen provides high strength and withstands coarse particles and debris
- Choice of Filtration Degree Filtration available with following degree as 80, 100, 125, 200 & 300 micron
- Dual-Chamber Housing Houses two filter elements side-by-side to double the effective filtration area.
