Coupler

  • Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard

  • Range: Different pressure ratings ranging from PN 4 to PN 16 kg/cm2

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

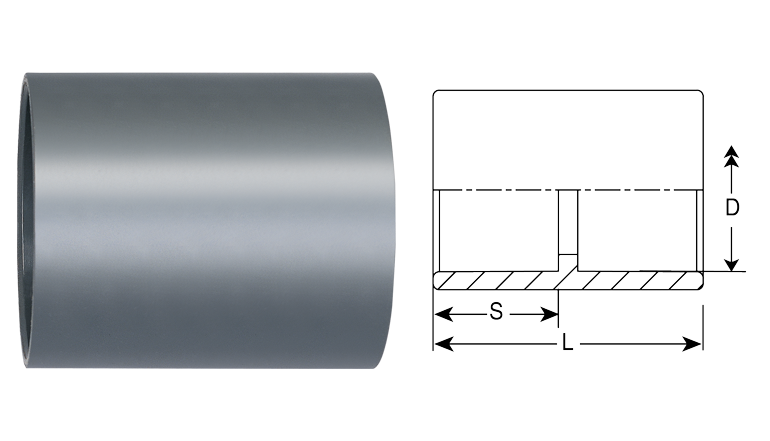

Technical Specifications

CODE
SIZE (MM)
D, (MM)
S (MM)
L (MM)
MIN. MAX.
C020 20 20.1 20.3 16.0 42.0
C025 25 25.1 25.3 19.0 41.5
C032 32 32.1 32.3 22.0 47.5
C040 40 40.1 40.3 26.0 55.5
C050 50 50.1 50.3 31.0 65.5
C063 63 63.1 63.3 38.0 82
C075 75 75.1 75.3 44.0 92.5
C090 90 90.1 90.3 51 107.5
C110 110 11 0.1 110.4 61 129.5
C125 125 125.1 125.4 69 145
C160 160 160.2 160.5 86 181
C200 200 200.3 200.6 106 224
Note: The molded fittings are available in different pressure. classes up to PN 16 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
