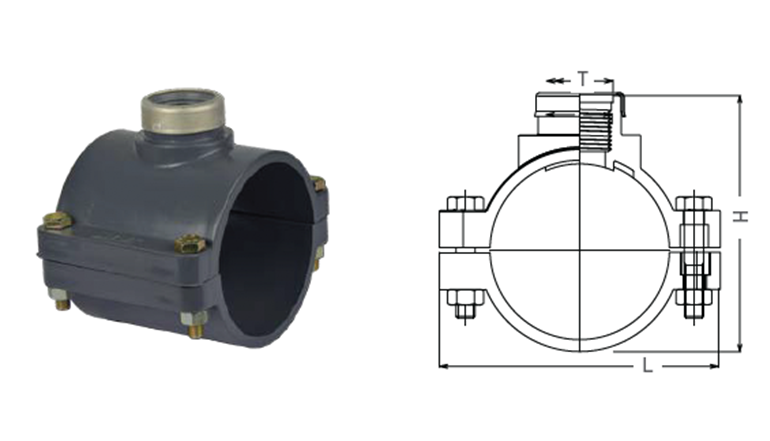

SERVICE SADDLE THREADED WITH CLADDING RING

Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard
Range: Different pressure ratings ranging from PN 4 to PN 16 kg/cm²

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

Technical Specifications

CODE	SIZE	T	L	H
CODE	(MM)XINCH	(BSP)	(MM)	(MM)
CSS032012	32X ½	½	64.0	56.5
CSS032034	32X ¾	¾	64.0	56.5
CSS040012	40X ½	½	85.0	67.0
CSS040034	40X ¾	¾	85.0	66.5
CSS050012	50x ½	½	90.0	82.0
CSS050034	50x ¾	¾	90.0	82.0
CSS050100	50x 1	1	90.0	82.5
CSS063012	63X ½	½	105.0	91.0
CSS063034	63X ¾	¾	105.0	91.5
CSS063100	63X 1	1	105.0	93.5
CSS075012	75X ½	½	116.0	105.8
CSS075034	75X ¾	¾	116.0	105.8
CSS075100	75X 1	1	116.0	105.8
CSS090012	90X ½	½	135.0	118.0
CSS090034	90X ¾	¾	135.0	120.0
CSS090100	90X 1	1	135.0	121.0
CSS110012	110x ½	½	154.0	139.0
CSS110034	110x ¾	¾	154.0	139.5
CSS110100	110x 1	1	154.0	139.5
CSS125012	125X ½	½	173.0	159.0
CSS125034	125X ¾	¾	173.0	159.0
CSS125100	125X 1	1	173.0	161.0
CSS140012	140X ½	½	188.0	164.5
CSS140034	140X ¾	¾	188.0	165.5
CSS140100	140X 1	1	188.0	168.5
CSS140114	140X 1 ¼	1 1 /4	188.0	170.5
CSS140112	140X 1 ½	1 ½	188.0	170.5
CSS160012	160X ½	½	212.0	184.0
CSS160034	160X ¾	¾	212.0	186.0
CSS160100	160X 1	1	212.0	189.0
CSS160114	160X 1 ¼	1 ¼	212.0	191.0
CSS160112	160X 1½	1 ½	212.0	191.0
CSS160200	160X 2	2	212.0	195.0

Note: The molded fittings are available in different pressure. classes up to PN 16 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
