SERVICE SADDLE THREADED 2 WAY WITH CLADDING RING

Product Standard: As Per IS 10124, IS 7834, DIN 8063, ISO 1452 and company standard
Range: Different pressure ratings ranging from PN 4 to PN 16 kg/cm²

We at Jains, believe in supplying the system rather than individual products. Its very easy to produce and supply the pipes, but supply of matching fittings is very critical. We manufacture and supply a wide variety of PVC fittings to suit the final application requirement. Apart from standard products, We also manufacture and supply a wide range of special, application specific developed fittings as per company standard or customer specifications to fulfil the end application requirements. The fittings are either injection moulded or fabricated from the pipes. PVC Fittings are manufactured as per the guidelines set by the company apart from referring to the national and international standards.

Technical Specifications

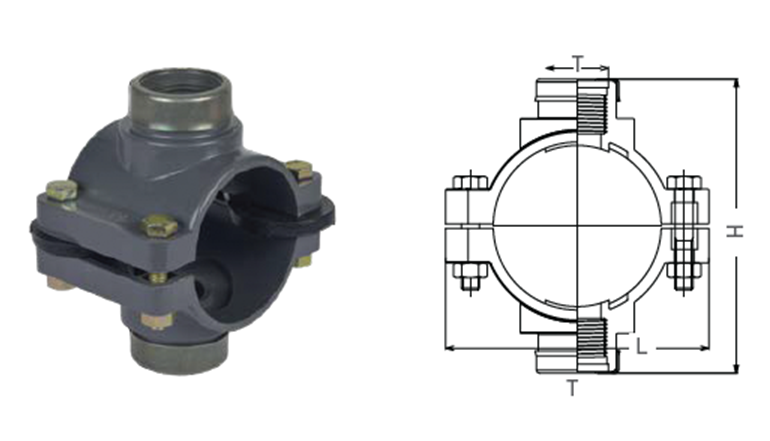

CODE	SIZE	T	L	H
CODE	(MM) X INCH	(BSP)	(MM)	(MM)
CTSS032012	32X ½	½	64.0	73.4
CTSS032034	32X ¾	¾	64.0	75.4
CTSS040012	40X ½	½	85.0	86.0
CTSS040034	40X ¾	¾	85.0	85.0
CTSS050012	50x ½	½	90.0	106.0
CTSS050034	50x ¾	¾	90.0	106.0
CTSS050100	50x 1	1	90.0	107.0
CTSS063012	63X ½	½	105.0	110.0
CTSS063034	63X ¾	¾	105.0	111 .0
CTSS063100	63X 1	1	105.0	115.0
CTSS075012	75X ½	½	116.0	127.0
CTSS075034	75X ¾	¾	116.0	127.0
CTSS075100	75X 1	1	116.0	127.0
CTSS090012	90X ½	½	135.0	1 38.0
CTSS090034	90X ¾	¾	1 35.0	140.0
CTSS090100	90X 1	1	135.0	142.0
CTSS110012	110x ½	½	154.0	158.0
CTSS110034	110X ¾	¾	154.0	159.0
CTSS110100	110x 1	1	154.0	162.0
CTSS125012	125X ½	½	173.0	183.0
CTSS125034	125X ¾	¾	173.0	183.0
CTSS125100	125X 1	1	173.0	187.0
CTSS140012	140X ½	½	188.0	182.0
CTSS140034	140X ¾	¾	188.0	184.0
CTSS140100	140X 1	1	188.0	190.0
CTSS140114	140X 1 ¼	1 ¼	1 88.0	197.0
CTSS140112	140X 1½	1 ½	188.0	197.0
CTSS160012	160X ½	½	212.0	204.0
CTSS160034	160X ¾	¾	212.0	208.0
CTSS160100	160X 1	1	212.0	214.0
CTSS160114	160X 1 ¼	1 ¼	212.0	218.0
CTSS160112	160X 1½	1 ½	212.0	218.0
CTSS160200	160X 2	2	212.0	226.0

Note: The molded fittings are available in different pressure. classes up to PN 16 kg/cm2 as per ISO : 1452. Fittings in other standard and not covered above are also made available on request.
